RF elements UltraDish UD-TP-24 Directional Parabolic Dish Antenna with TwistPort, 5GHz, 24dBi - 2pack

RF elements UltraDish UD-TP-24 Directional Parabolic Dish Antenna with TwistPort, 5GHz, 24dBi - 2pack
Your price incl. VAT (20.0%)
146.02 EUR
✅ In Stock 40+ Бр.
Delivery Planned Delivery Date by Courier to you 02-10-2024
RF elements
Manufacturer
Product number
UD-TP-24
Product Code
RL011.885
Warranty
24 months

Product description

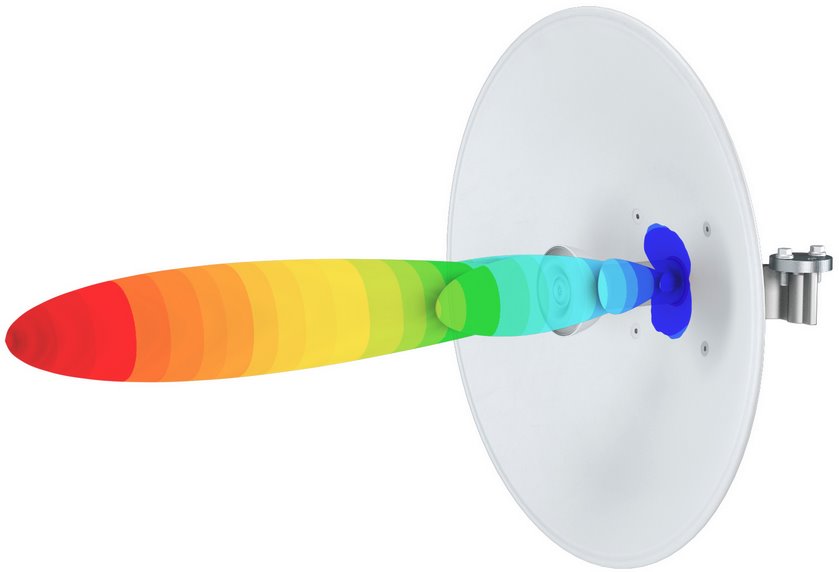

UD-TP-24 is one directional antenna from the RF elements workshop, characterized by a symmetrical beam angle, reduction of the side lobes and interference, gain of 24.4 dBi and TwistPort connector.

UD-TP-24

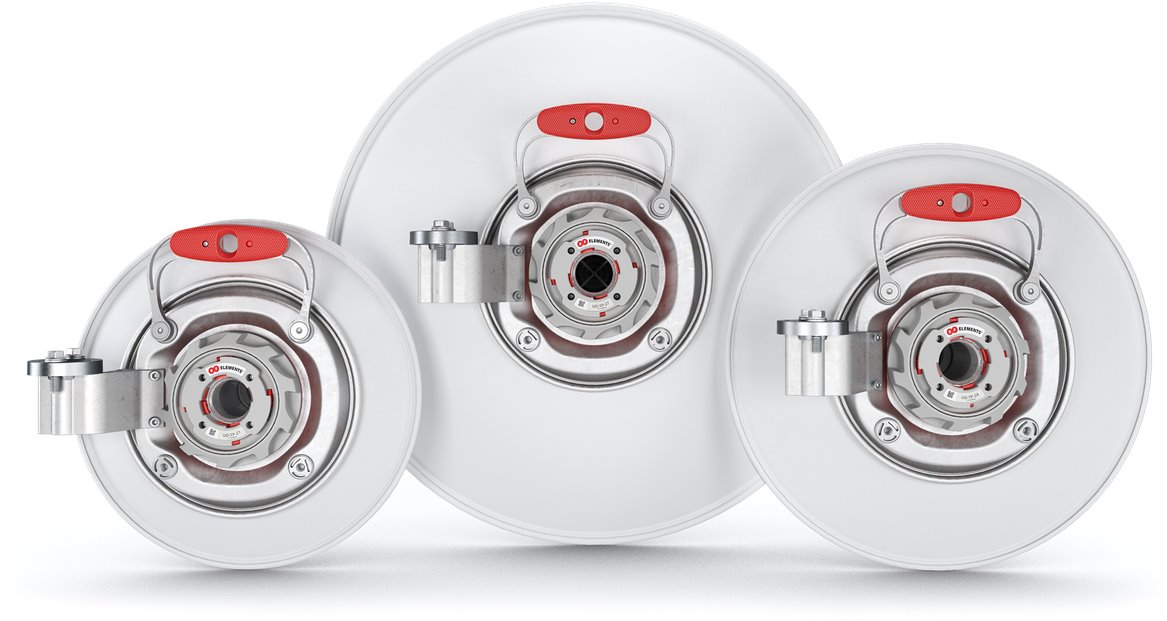

TwistPort connector - Convenient and lossless

The TwistPort connector is virtually lossless and changes all established standards thanks to its easy handling. There are no RF connectors or RF cables that cause significant signal loss. Compared to commonly used coaxial cables and connectors, the loss on TwistPort is almost immeasurable. Connection and disconnection is ingeniously simple and can be done with one hand.

UD-TP-24

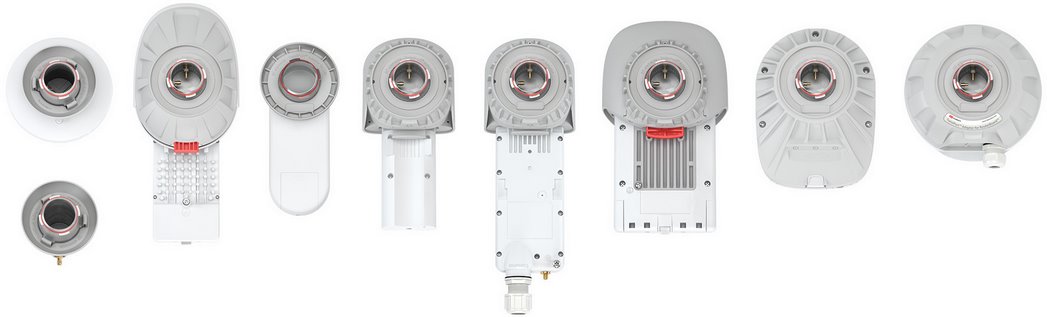

Platform support

For use with third-party products such as MikroTik, Ubiquiti or Cambium, RF elements offer a wide range of adapters that will allow you to easily connect these devices to the TwistPort connector. This will allow you to transfer any unit to another antenna with a single click without screwing up the pigtails.

UD-TP-24

Download

https://download.discomp.cz/rfelements/datasheets/UD-TP-24.pdf
Download Dataheet

Technical parameters

LAN ports
F/B ratio [dB]
35
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
12
Azimuth beam width (-6dB) [°]
12
Antenna type
Directional
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
24
Material
UV stabilized ABS plastic, Aluminum, Polycarbonate, Stainless steel
Operating temperature [°C]
-40 up to 60
Weight [kg]
2,7
Width [mm]
420
Height [mm]
420
Depth [mm]
263
