MikroTik RouterBOARD RB912UAG-2HPnD, 802.11b/g/n, RouterOS L4, miniPCIe
Your price incl. VAT (20.0%)
62.12 EUR
✅ In Stock 20+ Бр.
Planned Delivery Date by Courier to you 20-11-2024
1.51 EUR excl. VAT
Product description

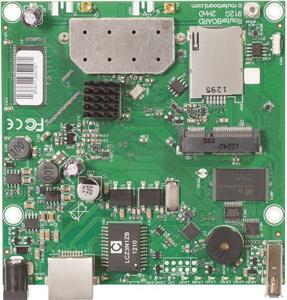

The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
Download
Technical parameters
LAN ports
Power over Ethernet
8 .. 30V DC
Tx power [dBm]
30
Design
RouterBOARD
Wireless frequency
2.4 GHz
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
300
2.4GHz MIMO
2 x 2
Type of antenna
Detachable
RF connectors
(2) MMCX
Power type
DC connector, PoE
Operating system
RouterOS - L4
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
14
USB ports 2.0
1
Power via connector/terminal
8 .. 30V DC
Operating temperature [°C]
-40 up to 70
Width [mm]
105
Height [mm]
15
Depth [mm]
105
CPU
AR9342
CPU frequency [MHz]
600
CPU cores
1
MiniPCI-e slots
1
USB
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
64
Default login and password
admin / -
