TP-Link EAP653 Access Point

TP-Link EAP653 Access Point
Your price incl. VAT (20.0%)
105.50 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 02-10-2024
TP-Link
Manufacturer
Product number
EAP653
Product Code
RL021.364
Warranty
60 months

Product description

The EAP653 is EAP Access Point with Roaming, which supports the latest wireless protocol 802.11ax with MU-MIMO technology and easily reaches speeds of up to 2402 + 574 Mbps in a dual-band Wi-Fi network for multiple devices at once, thanks to 2x2 MIMO on both radio parts. For large data flow, EAP is equipped with one Gigabit LAN port with support for 10/100/1000 Mbps. For great coverage, the AP has a total of 4 built-in antennas, 2 of which operate 2.4GHz radio and have a gain of 4dBi and the remaining 2 antennas take care of 5GHz and have a gain of 5dBi. Thanks to these improvements, the access point also has consumption of 13,5W and can be powered either directly via a 12V DC power adapter or via 802.3at PoE. Great news is encrypting wireless traffic with WPA3.

TP-Link EAP653

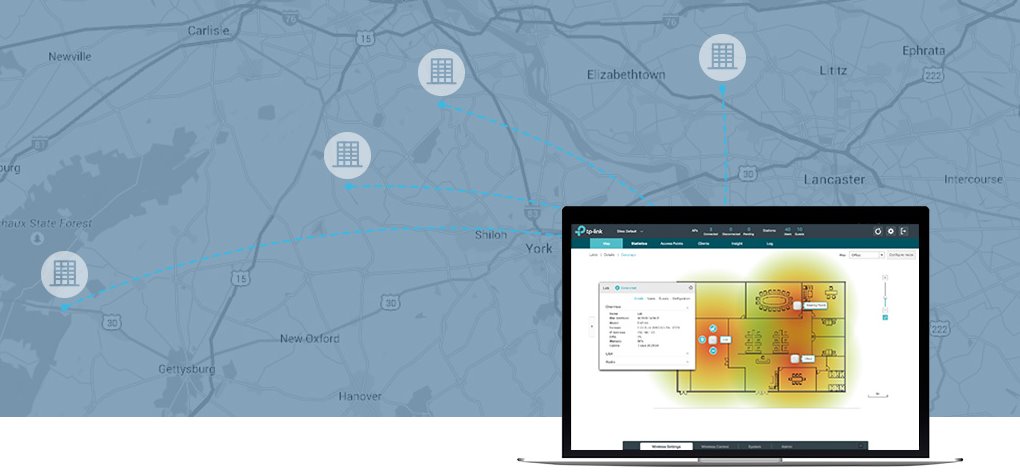

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

TP-Link EAP653

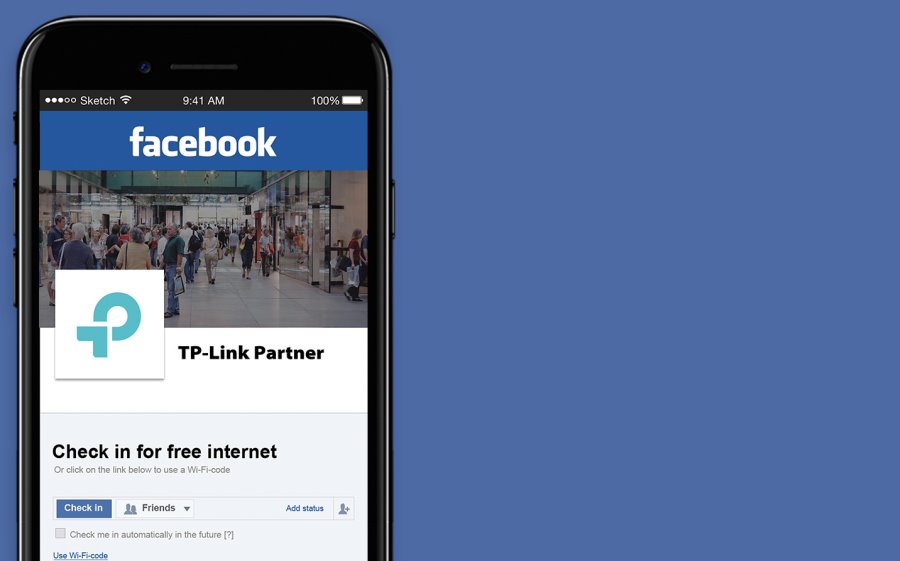

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

TP-Link EAP653

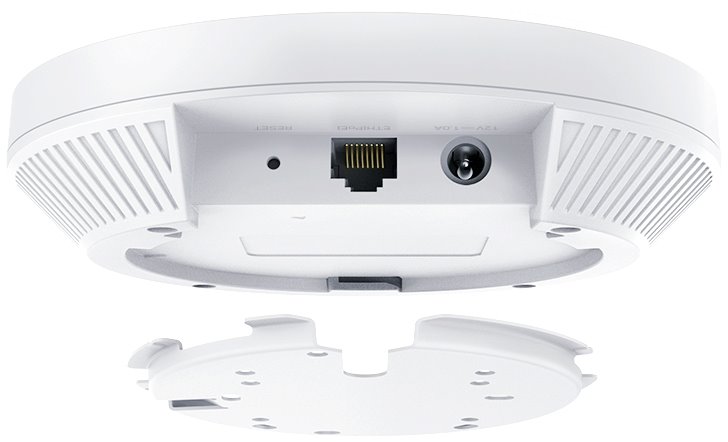

Package contains

  • Unit EAP653
  • Ceiling kit

Download

https://download.discomp.cz/tp-Link/Datasheets/EAP653.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
20
Tx power 5GHz [dBm]
30
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
4
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
4, 5
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
13,5
Power via connector/terminal
12V / 1A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
160
Height [mm]
33
Depth [mm]
160
Default IP address
Dynamic from DHCP
Default login and password
admin / admin
