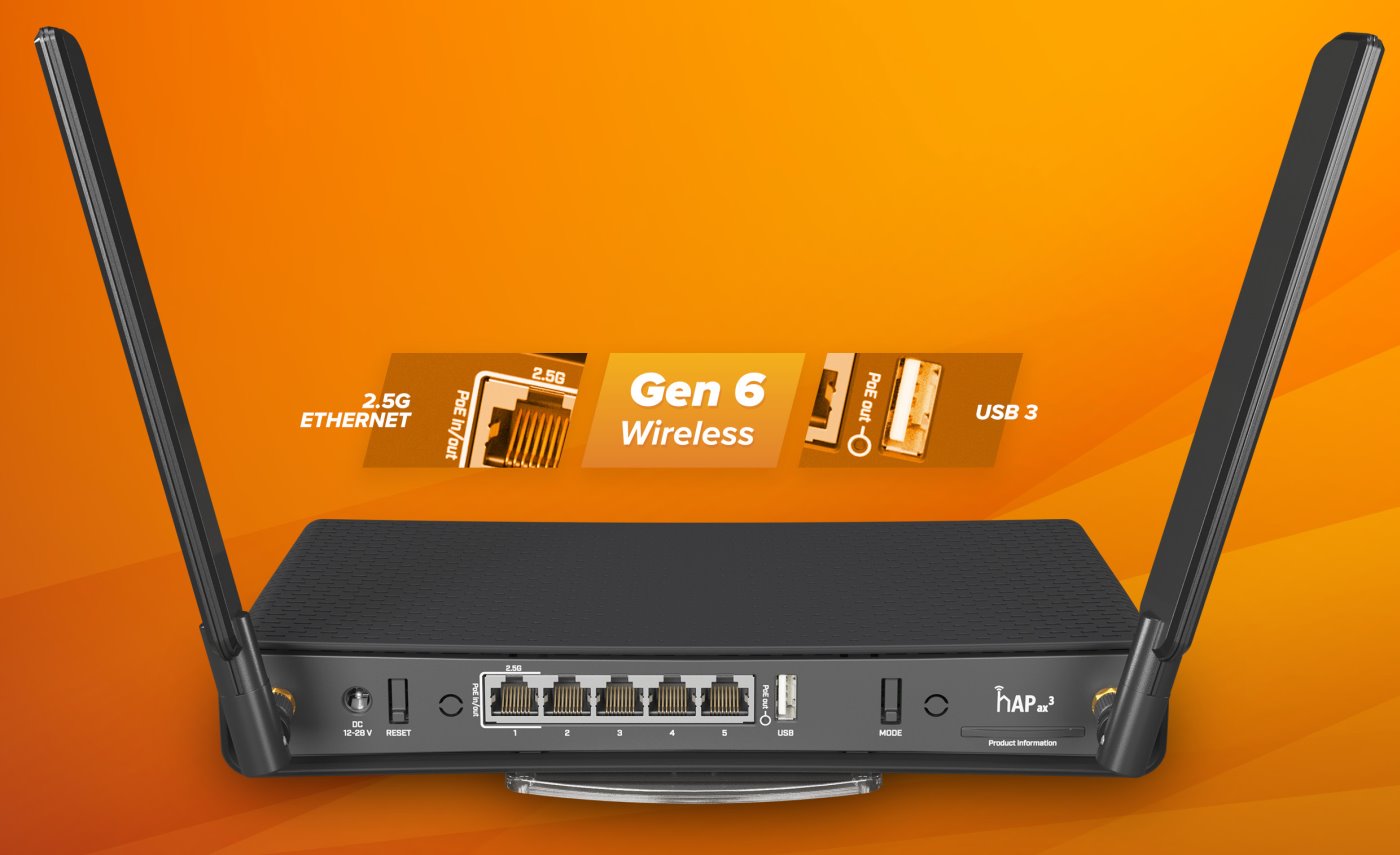

MikroTik C53UiG+5HPaxD2HPaxD, hAP ax3

Product description

The router for households or small companies with the designation hAP ax3 or C53UiG+5HPaxD2HPaxD has an L6 license, desktop design and includes 5 Gigabit ports of which the 1st port supports both PoE in and PoE out and even 2.5 Gigabit ethernet. In addition, the router has two radio parts supporting 802.11a/b/g/n/ac/ax standards allowing simultaneous operation in both bands and two removable omnidirectional antennas. In the 2.4GHz band, 2×2 MIMO with a transfer rate of up to 574 Mbps and in the 5 GHz band 2×2 MIMO with a transfer rate of 1200 Mbps are supported. The gain of two removable wireless antennas is 3.3 dBi (2.4 GHz) and 5.5 dBi (5 GHz).

Key Features

• (1) 2.5 Gigabit Ethernet + (4) Gigabit Ethernet
• Support PoE in/out on 1st port
• 1800MHz CPU - 4 cores, ARM 64bit architecture
• 128MB NAND, 1GB RAM
• Wi-Fi - 2.4 GHz (2×2 MIMO, 574 Mbps, 802.11ax), 5 GHz (2×2 MIMO, 1200 Mbps, 802.11 ax)
• Support WPA3 encryption
• RouterOS level 6
• (2) removable antennas, 5.5 dBi gain
• The 802.11ax standard increases speed by up to 40 % in the 5 GHz band and up to 90 % in the 2.4 GHz band

Package contents

• Device
• (2) Antenna
• Power adapter 24 V/1.5 A
• Plastic stand + screws

Download

http://www.mikrotik.com/download

Firmware (RouterOS / SwOS)

https://download.discomp.cz/MikroTik/Datasheets/hAPax3.pdf

Datasheet
