RF elements UltraDish UD29WB Directional Parabolic Dish Antenna with TwistPort, 5/6GHz, 29 dBi

RF elements UltraDish UD29WB Directional Parabolic Dish Antenna with TwistPort, 5/6GHz, 29 dBi
Your price incl. VAT (20.0%)
200.78 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
RF elements
Manufacturer
Product number
UD29WB
Product Code
RL027.850
Warranty
24 months

Product description

UltraDish™ 29 WB is designed for CPE application in 5 & 6 GHz bands with increased gain requirements.

UD29WB

Key features

  • Wideband performance with 2,225 MHz wideband covering 5 & 6 GHz unlicensed spectrum bands
  • 29 dBi of nominal gain
  • Excellent VSWR
  • TwistPort™ waveguide connector. Connect directly to waveguide or use TPA with coaxial connectors

Industry leading design with innovative materials

  • Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
  • All aluminum construction for low weight
  • UBR mounting bracket with dual pole clamp for better grip
  • Stainless steel hardware with anti-seize coating
  • Industry leading ergonomics with integrated handle for easy deployment
  • Optional side strut for increased wind resistance

Download

https://download.discomp.cz/RFelements/Datasheets/UD29WB_Datasheet.pdf
Download Datasheet

Technical parameters

LAN ports
F/B ratio [dB]
40
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
MIMO, SISO
2 x 2
Polarization
VH
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
7,6
Azimuth beam width (-6dB) [°]
7,6
Antenna type
Directional
Purpose
Outdoor
Antenna gain [dBi]
29
Material
Aluminum, Stainless steel, UV stabilized ABS plastic
Operating temperature [°C]
-35 up to 60
Weight [kg]
4,2

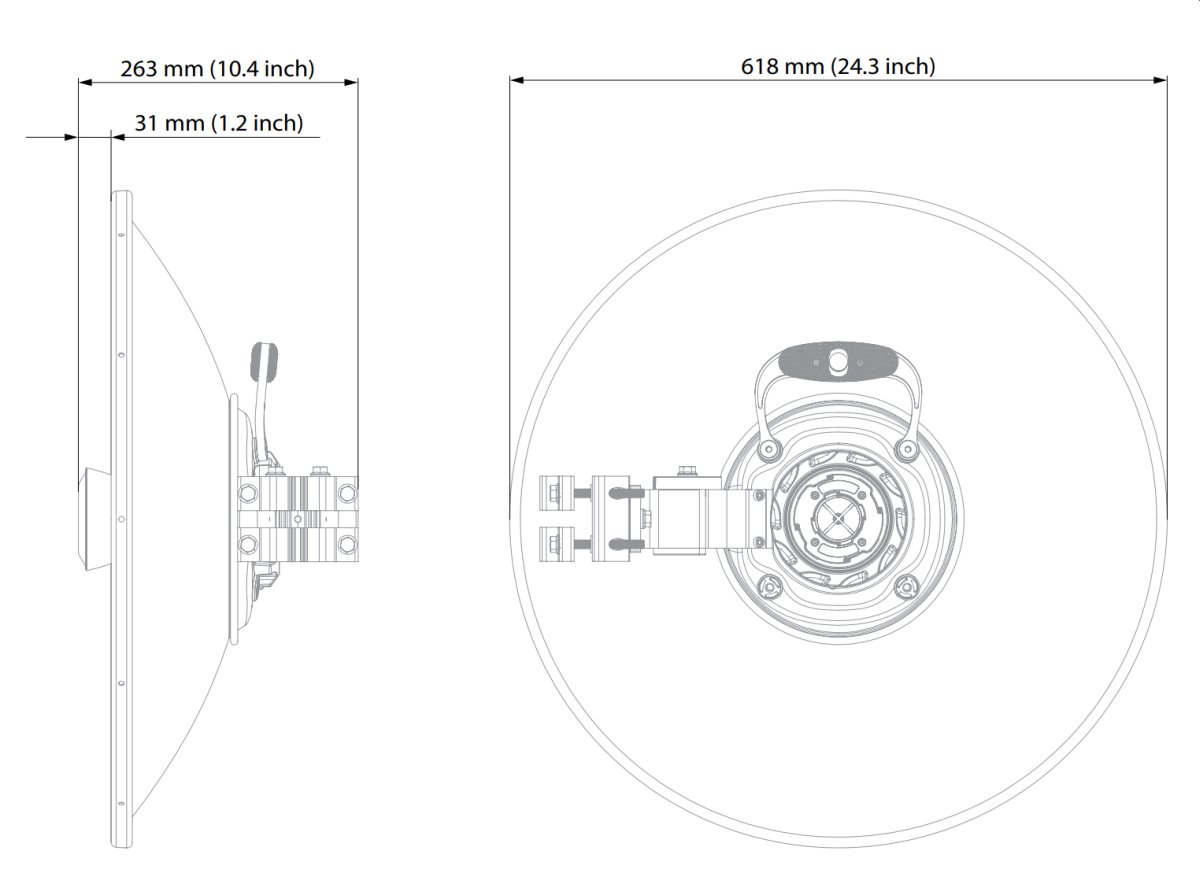

Width [mm]
618
Height [mm]
618
Depth [mm]
263
