MikroTik LtAP-2HnD&FG621-EA&LR8G, LtAP LR8G LTE6 kit

MikroTik LtAP-2HnD&FG621-EA&LR8G, LtAP LR8G LTE6 kit
Your price incl. VAT (20.0%)
207.16 EUR
Ordered for stock
Delivery Planned Delivery Date by Courier to you 30-07-2025
MikroTik
Manufacturer
Product number
LtAP-2HnD&FG621-EA&LR8G
Product Code
RL028.836
Warranty
24 months

Product description

The LtAP LR8G LTE6 kit, equipped with the new LTE6 modem, is a compact and robust wireless access point with support for LTE Cat6, LoRa networks, LAN, GPS, a full-featured USB port, and a serial port for debugging. It offers the perfect solution for a wide range of installations. The 2.4 GHz wireless connection with a modulation speed of up to 300 Mbps provides fast LTE network access for your mobile devices. Fixed devices can be connected via the Gigabit Ethernet port. On the LTE network, you can achieve speeds of up to 300 / 50 Mbps (download/upload). The LtAP offers three power options with a voltage range of 12 to 30 V DC – DC jack, PoE, and a 4-pin automotive connector suitable for connection, for example, in a vehicle.

Key Features

  • 2.4 GHz Wi-Fi (802.11b/g/n) - 300 Mbps
  • 3G/LTE with download and upload speeds of 300 Mbps / 50 Mbps, LTE Category 6
  • Support for the most commonly used LTE bands - 1, 3, 5, 7, 8, 20, 28, 38, 40, 41
  • (3) mini SIM slots - SIM Failover support
  • (1) 10/100/1000 Mbps LAN
  • Wide power options - DC jack, 4-pin automotive, PoE
  • Robust chassis with IP54 rating and operating temperature from -40 to +70°C
  • Built-in GPS with external antenna
  • LoRa networks - 863 to 870 MHz

LoRa Network Support

Thanks to the new LR8G LoRa module, the device brings reliable LoRa solutions at an even better price. The LtAP LR8G LTE6 kit supports frequencies 863 - 870 MHz, and the improved RX sensitivity of up to -141 dBm increases range and enhances reliability—even in challenging conditions.

LtAP-2HnD&FG621-EA&LR8G

What is LoRa good for?

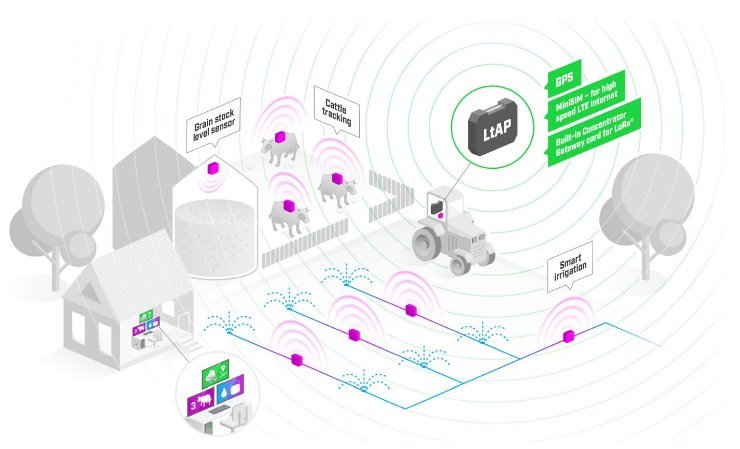

The LoRa network (Long Range) is ideal for long-distance wireless communication with low power consumption, making it suitable for Internet of Things (IoT) applications. It uses low-frequency bands and allows devices to connect over distances of tens of kilometers, making it perfect for monitoring sensors, smart meters, or outdoor equipment.

Package Contents

  • Device with FG621-EA (LTE) and R11e-LR8G (LoRa8)
  • 24V / 1.2A power adapter
  • 4-pin automotive DC cable
  • Screws, wall plugs

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/mikrotik/datasheets/IoT_Updates.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Outdoor, On the wall
Protection class
IP54
Power over Ethernet
12 .. 30V DC
Wireless frequency
2.4 GHz, LTE, 863 - 870 MHz
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
25
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
RF connectors
(2) SMA female
Antenna gain [dBi]
2,5
Integrated 4G/LTE radio part
Yes
Power type
DC connector, PoE, 4-pin automotive
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz
Operating system
RouterOS - L4
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
24
Serial port
RS-232
Power via connector/terminal
12 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Depth [mm]
40
Height [mm]
170
Width [mm]
162
CPU
MT7621AT
CPU frequency [MHz]
880
CPU cores
2
MiniPCI-e slots
2
SIM slot
Yes
SIM slots quantity
3
USB
Yes
IPv6 support
Yes
Internal storage [MB]
16
Default IP address
192.168.88.1
RAM [MB]
128
GPS modul
Yes
