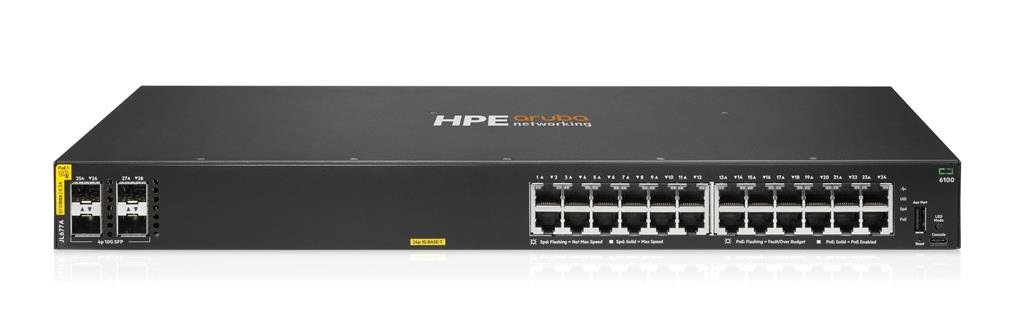

HPE Networking CX 6100 24G CL4 PoE 4SFP+ 370W
Your price incl. VAT (20.0%)
1,617.48 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 19-11-2025
6.23 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.10 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.10 EUR excl. VAT
10.57 EUR excl. VAT
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
128
MAC address table
8192
Jumbo frame [Bytes]
9198
Packet forwarding rate [Mpps]
95,2
Web management
Yes
Management
Web management, SSH, Telnet, Aruba Central, Aruba NetEdit
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP+ cages
4
Optical interfaces
(4) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
370
Max. power consumption [W]
23
Serial port
USB-C
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
230V AC
Buttons
Reset, LED
Operating temperature [°C]
0 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
268
Default IP address
192.168.1.1, Dynamic from DHCP
Default login and password
admin / -
