Ubiquiti Unifi Switch USW-Pro-XG-24-PoE

Ubiquiti Unifi Switch USW-Pro-XG-24-PoE
Your price incl. VAT (20.0%)
1,732.37 EUR
Ordered for stock
Delivery Planned Delivery Date by Courier to you 07-01-2026
Ubiquiti
Manufacturer
Product number
USW-Pro-XG-24-PoE
Product Code
RL029.439
Warranty
24 months

Product description

The UniFi Switch USW-Pro-XG-24-PoE is a managed L3 PoE switch with a switching capacity of 460 Gbps, (8) 2.5-Gigabit LAN, (16) 10-Gigabit LAN ports and two SFP28 (25G/10G/1G) ports. All Ethernet ports support PoE+++ 802.3af/at/bt PoE-Out with output power of up to 90W/port and a total PoE budget of 720 W. The ports feature Etherlighting, allowing you to color-illuminate ports to indicate port location, speed/connection, and VLAN. The switch is powered via 230V AC, and the USP RPS DC port serves as a backup in case of primary power failure. Maximum power consumption including PoE is 870W.

Key Features

  • (8) 2.5G ports – supports 802.3af/at/bt PoE+++ (90W/port)
  • (16) 10G ports – supports 802.3af/at/bt PoE+++ (90W/port)
  • (2) 25/10/1G SFP28 ports
  • 720 W PoE budget
  • Etherlighting – visual indication of port information
  • Rack-mountable
  • Management via UniFi Network Server

Management via UniFi Network Server

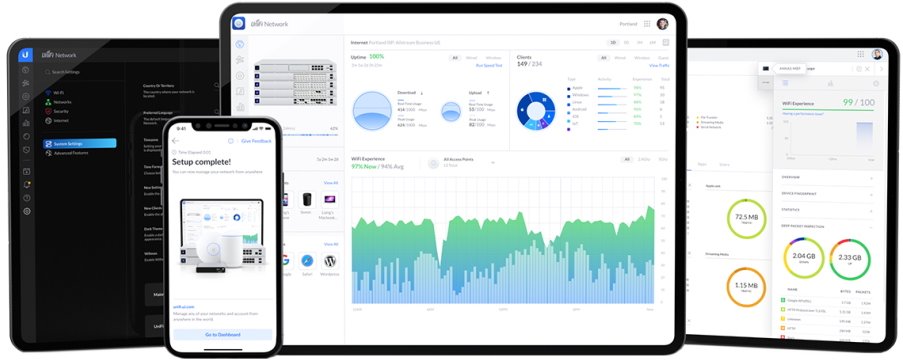

The USW-Pro-XG-24-PoE does not feature a web interface, but is centrally managed using the UniFi Network Server with support for the UniFi mobile app. It offers an extensive set of advanced L2 and L3 switching protocols and features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Network Server and mobile app allow administrators to configure and monitor nearly all switch functions via a graphical user interface from anywhere.

USW-Enterprise-24-PoE

Package Contents

  • Device
  • Power cable
  • Rack-mount brackets

Download

https://dl.ui.com/qig/usw-pro-xg-24-poe
Download Qucik Guide
https://techspecs.ui.com/unifi/switching/usw-pro-xg-24-poe
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
MAC address table
128000
Packet forwarding rate [Mpps]
342
Switchning capacity [Gbps]
460
Management
UniFi Network
Features
L3, VLAN, DHCP snooping, L2
Power type
Mains power (230V), UniFi SmartPower RPS
Fans
Yes
LAN speed
(8) 2.5G/1G/100M/10M + (16) 10G/5G/2.5G/1G/100M/10M
Max. LAN ports speed
10G
PoE type
PoE-Out (only)
SFP28 cages
2
Optical interfaces
(2) 1/10/25Gbps
PoE-Out standards
802.3bt, 802.3af, 802.3at
Redundant power supply
Yes
PoE Out ports
24
PoE budget [W]
720
Max. power consumption [W]
150
Chassis design
Metal
Power via connector/terminal
230V AC, 52V DC
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
480
Default IP address
192.168.1.20, Dynamic from DHCP
Default login and password
ubnt / ubnt
Other features
Touchscreen
