TP-Link IES210GPP - Omada industrial PoE switch
Your price incl. VAT (20.0%)
212.48 EUR
Ordered for stock
Planned Delivery Date by Courier to you 23-07-2025
Product description
The industrial easy managed PoE switch has 8 Gigabit LAN ports with PoE support and 2 Combo RJ45/SFP slots. The device has DIN rail mounting. The operation temperature range is between -40 and 75 °C. PoE budget is 240W and it has long-range PoE support up to 250 meters. The devices is covered by IP40-rated aluminum housing.

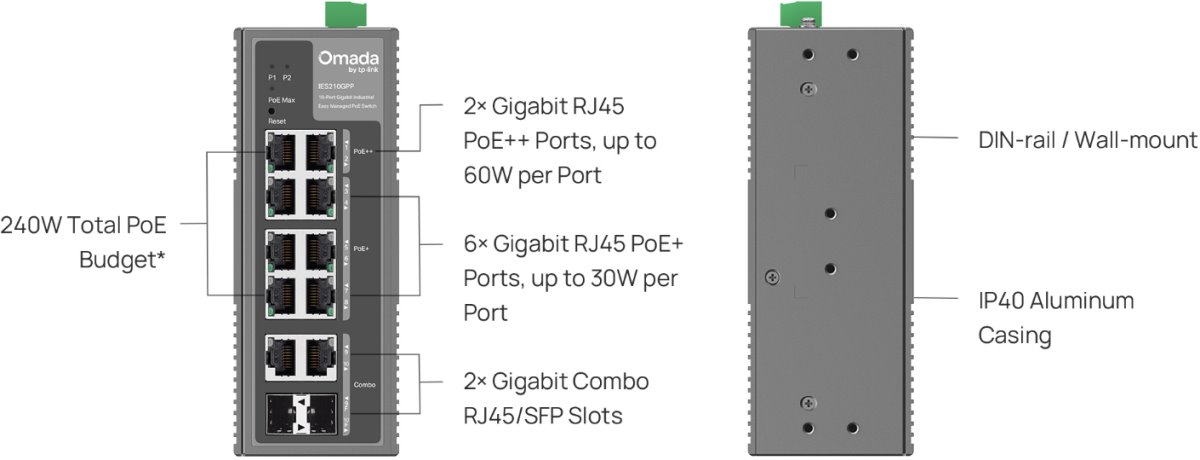

Key features
- (8) Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
- (2) Gigabit Combo RJ45/SFP Slots
- 240W Power Budget with up to 60W for two PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

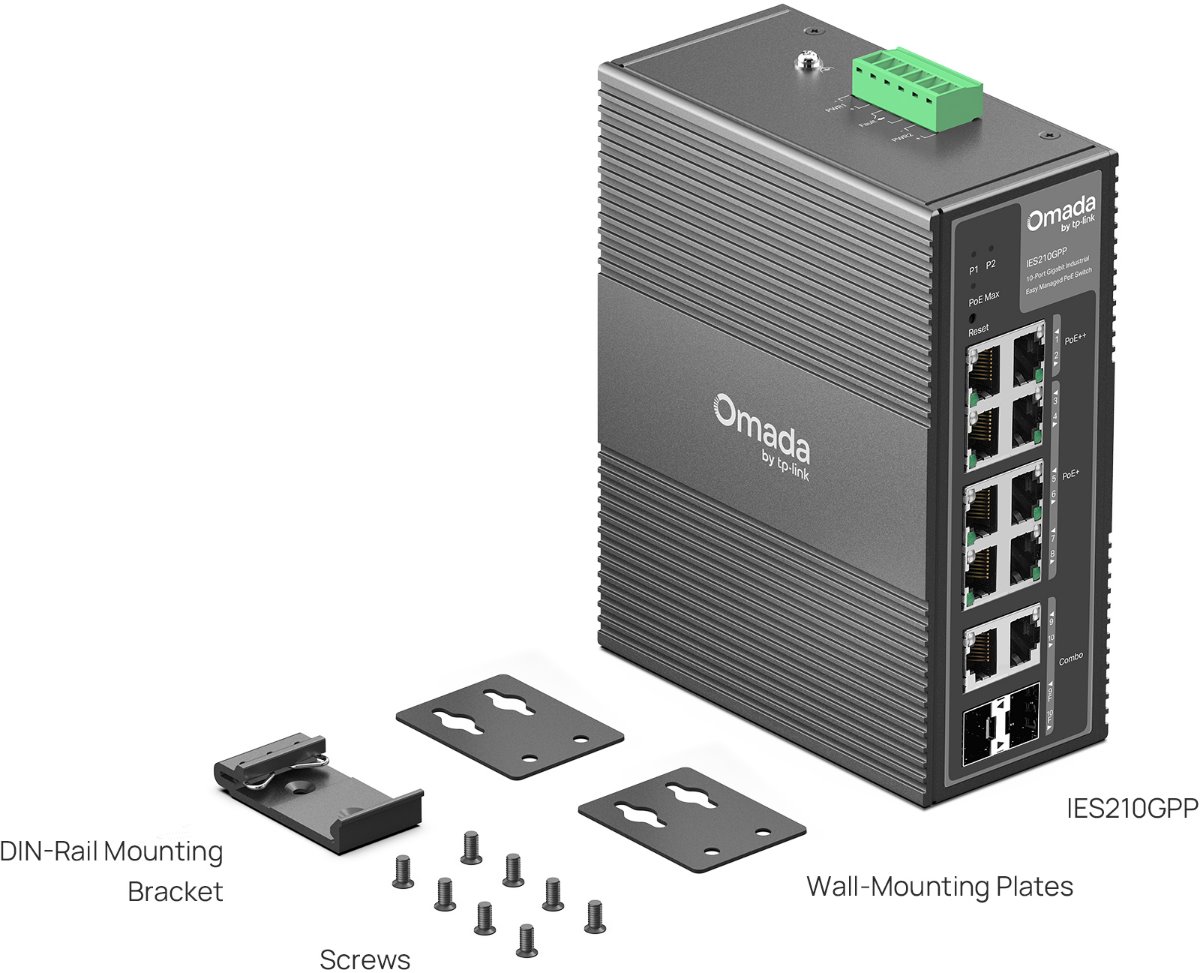

Package contents
Download
Technical parameters
LAN ports
Protection class
IP40
Design
DIN rail
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
14,9
Switchning capacity [Gbps]
20
MAC address table
8000
Management
Omada controller, Web management
Features
QoS, VLAN, L2
Purpose
Indoor
Power type
DC terminal
Fans
No
LAN speed
(10) 10/100/1000Mbps
PoE type
PoE-Out (only)
Optical interfaces
(2) 1000Mbps Combo
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
8
Redundant power supply
Yes
PoE budget [W]
240
Long range PoE - up to 250m
Yes
Max. power consumption [W]
18,3
Chassis design
Metal
Power via connector/terminal
12 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Depth [mm]
120
Width [mm]
60
Height [mm]
155
