MERCUSYS MS106P switch with 4x PoE+

MERCUSYS MS106P switch with 4x PoE+
Your price incl. VAT (20.0%)
17.16 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 09-07-2025
MERCUSYS
Manufacturer
Product number
MS106P
Product Code
RL029.665
Warranty
36 months

Product description

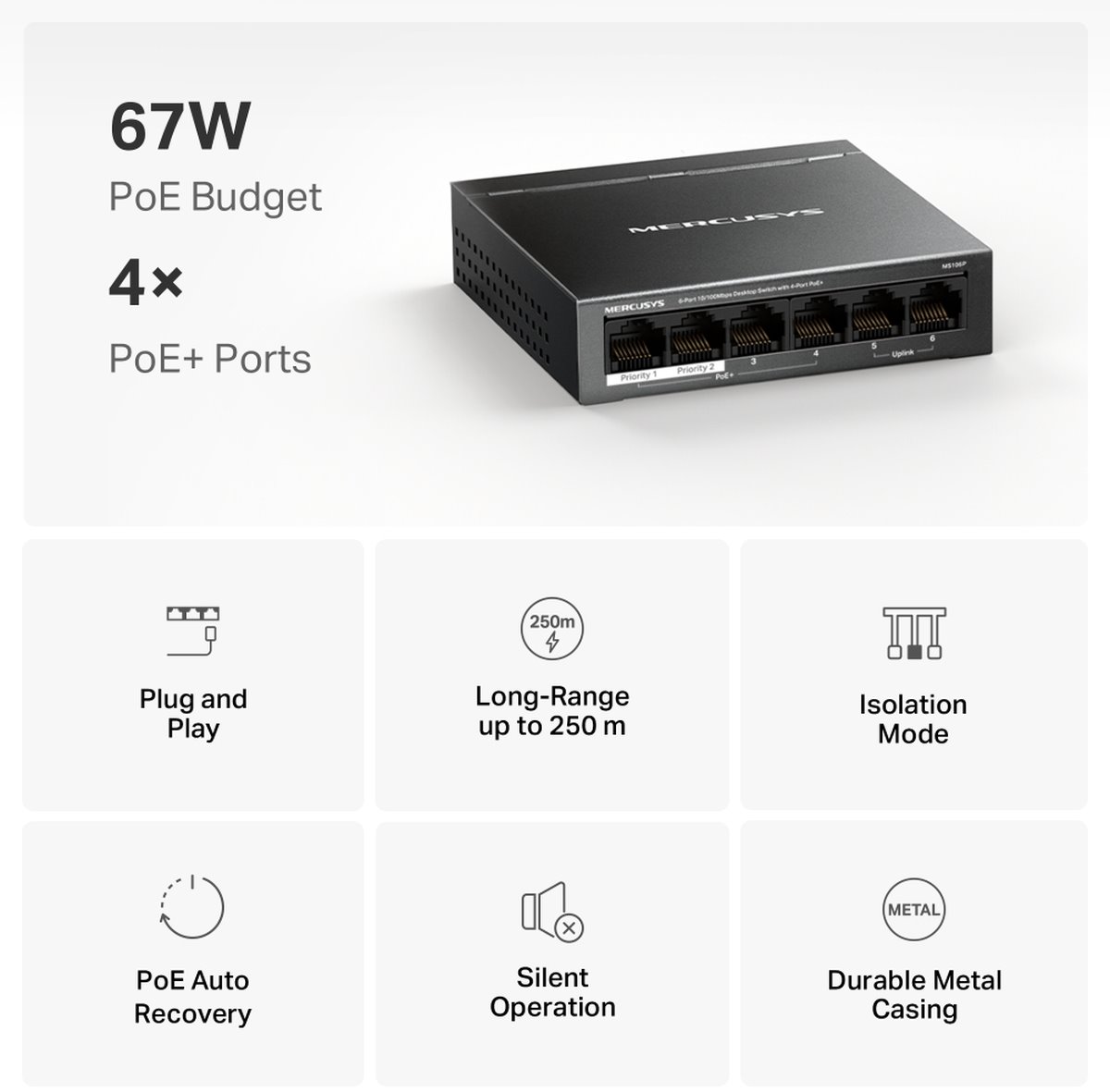

The MS106P is a 6-Port 10/100 Mbps switch with 4-Port PoE+, ideal for small and medium business IP surveillance with a 67 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.

MERCUSYS MS106P

Key features

  • (6) Ports: 4× 10/100 Mbps PoE+ Ports + 2× 100Mbps non-PoE Ports
  • Two Cables in One: With 4 PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for PoE port and 67 W for all PoE ports
  • 2× Uplink Ports: MS110CP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Plug and Play: Simple to use and saves time and effort
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life

Package contents

  • Device
  • Power Adapter
  • Quick Installation Guide

Download

https://download.discomp.cz/Mercusys/QSG/7100000115_PoE_Switch_IG20250402033944_MS106P.pdf
Download Quick Installation Guide
https://www.mercusys.com/en/product/details/ms106p/#specifications
Download Link to Specifications

Technical parameters

LAN ports
Design
On the wall, Desktop
MAC address table
2000
Jumbo frame [Bytes]
2048
Power type
DC connector
Fans
No
LAN ports
6
LAN speed
(6) 10/100Mbps
Max. LAN ports speed
100M
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
67
Long range PoE - up to 250m
Yes
Max. power consumption [W]
1,9
Chassis design
Metal
Power via connector/terminal
53,5V/1,31A
Buttons
Auto Recovery, Extend mode, Isolation port
Operating temperature [°C]
0 up to 40
Width [mm]
100
Height [mm]
25
Depth [mm]
98
