Grandstream GWN7822P managed network switch L3, 16xGbE, 8x 2,5GbE

Grandstream GWN7822P managed network switch L3, 16xGbE, 8x 2,5GbE
Your price incl. VAT (20.0%)
418.39 EUR
✅ Availability in an external Partner
Delivery Planned Delivery Date by Courier to you 17-09-2025
Manufacturer
Product number
GWN7822P
Product Code
RL029.798
Warranty
36 months

Product description

The GWN7820 series are Layer 3 multi-gigabit managed PoE switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable.

Grandstream GWN7822P

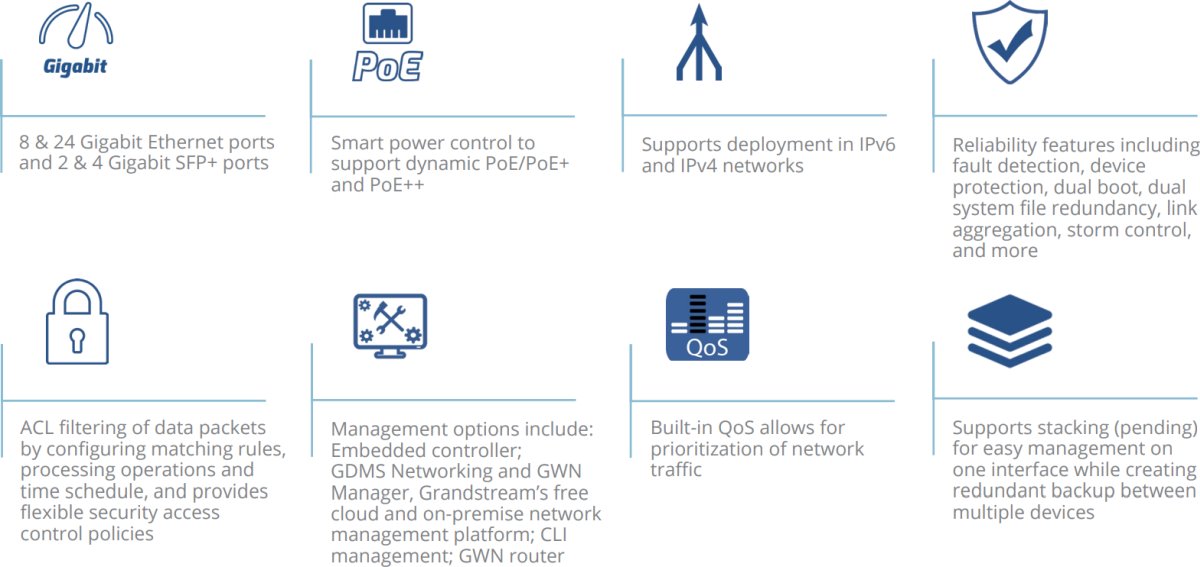

Key features

  • 24 Gigabit ports (16x 1G ports, 8x 2.5G), 4 SFP+ ports
  • Smart power control to support dynamic PoE/PoE+ and PoE++
  • Supports deployment in IPv6 and IPv4 networks
  • Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
  • ACL filtering of data packets by configuring matching rules, processing operations, and time schedules, and provides flexible security access control policies
  • Built-in QoS allows for prioritization of network traffic
  • Management options include: Embedded controller; GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise network management platform; CLI management; GWN router
  • Supports stacking for easy management on one interface while creating redundant backup between multiple devices

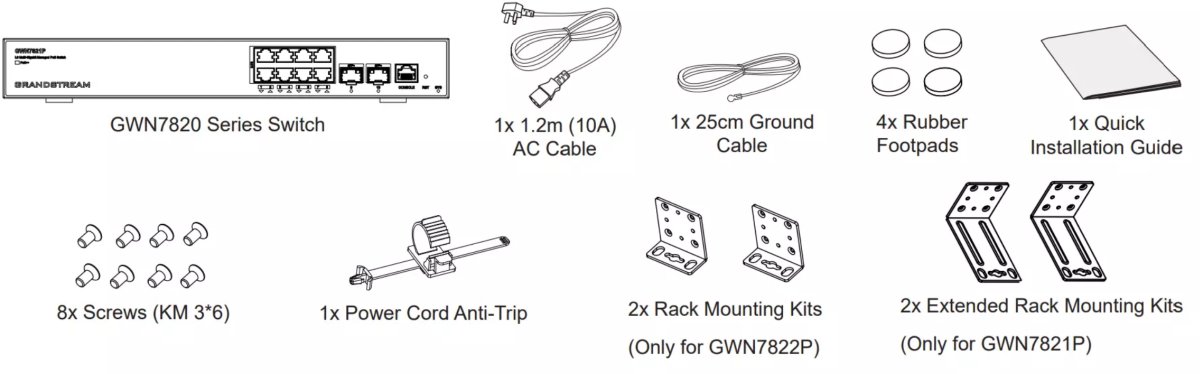

Package contents

Grandstream GWN7822P

Download

https://documentation.grandstream.com/knowledge-base/gwn78xxp-vlan-configuration-guide/
Download Link to VLAN Configuration Guide
https://download.discomp.cz/Grandstream/Datasheets/Datasheet_GWN7821P_GWN7822P_English.pdf
Download Datasheet
https://download.discomp.cz/Grandstream/QIG/GWN782xP_QIG_ML.pdf
Download Quick Installation Guide

Technical parameters

LAN ports
Design
On the wall, Desktop, Rackmount
Switchning capacity [Gbps]
152
Packet forwarding rate [Mpps]
113,088
Web management
Yes
Management
Web management, SSH, Telnet, Cloud (GDMS)
Features
L3, VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(8) 100/1000/2500 Mbps + (16) 10/100/1000 Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP+ cages
4
Optical interfaces
(4) 10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
Redundant power supply
Yes
PoE Out ports
24
PoE budget [W]
360
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
0 up to 45
Weight [g]
4100
Weight [kg]
4,7
Width [mm]
440
Height [mm]
44
Depth [mm]
300
Default IP address
192.168.0.254
Default login and password
admin / (preset password, see label/engraving)
