MERCUSYS MS120GP 20port Gigabit rackmount switch with 16 ports PoE+
Your price incl. VAT (20.0%)
124.31 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 03-09-2025
Product description

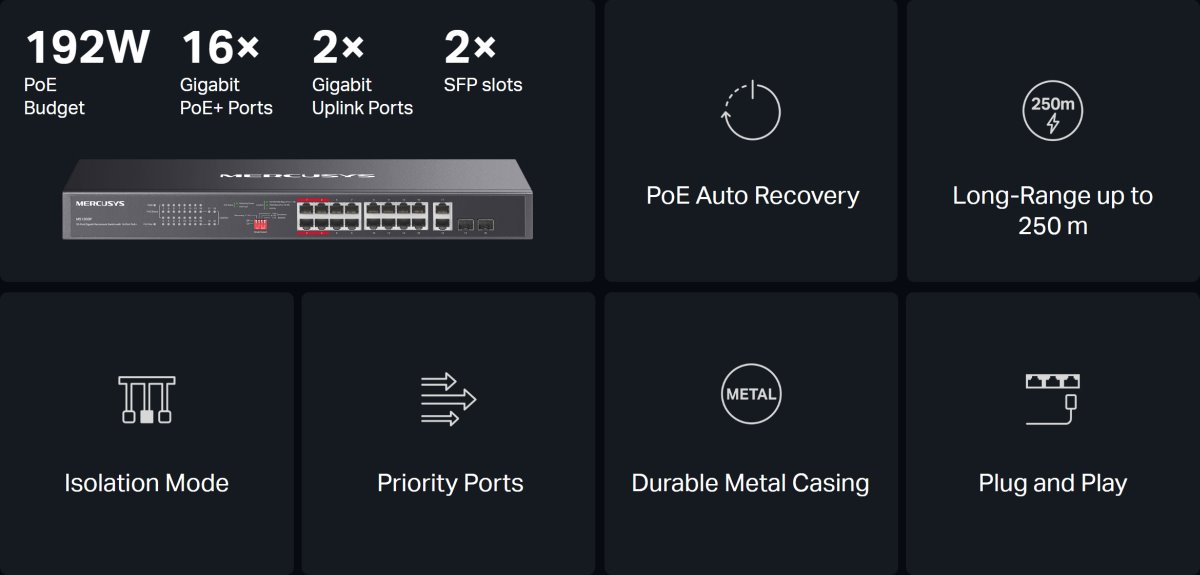

The MS120GP is a 20-port gigabit rackmount switch with 16-port PoE+, ideal for small and medium business IP surveillance with a 192 W PoE budget. The plug-and-play design makes it easy for deployment without the need for a technician.
Key features
- 16× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports, and 2× Gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 192 W* for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode
- Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
Package contents
- Device
- Power Cord
- Installation Guide
- Mounting Brackets and Fittings
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
40
MAC address table
8000
Purpose
Indoor
Power type
Mains power (230V)
Fans
Yes
LAN speed
(18) 10/100/1000Mbps
PoE type
PoE-Out (only)
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
16
PoE budget [W]
192
Long range PoE - up to 250m
Yes
Max. power consumption [W]
13,5
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-10 up to 50
Depth [mm]
180
Width [mm]
440
Height [mm]
44
