Teltonika TSW030 8-port Ethernet Switch

Teltonika TSW030 8-port Ethernet Switch
Your price incl. VAT (20.0%)
38.33 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Teltonika
Manufacturer
Product number
TSW030000000
Product Code
RL029.987
Warranty
24 months

Product description

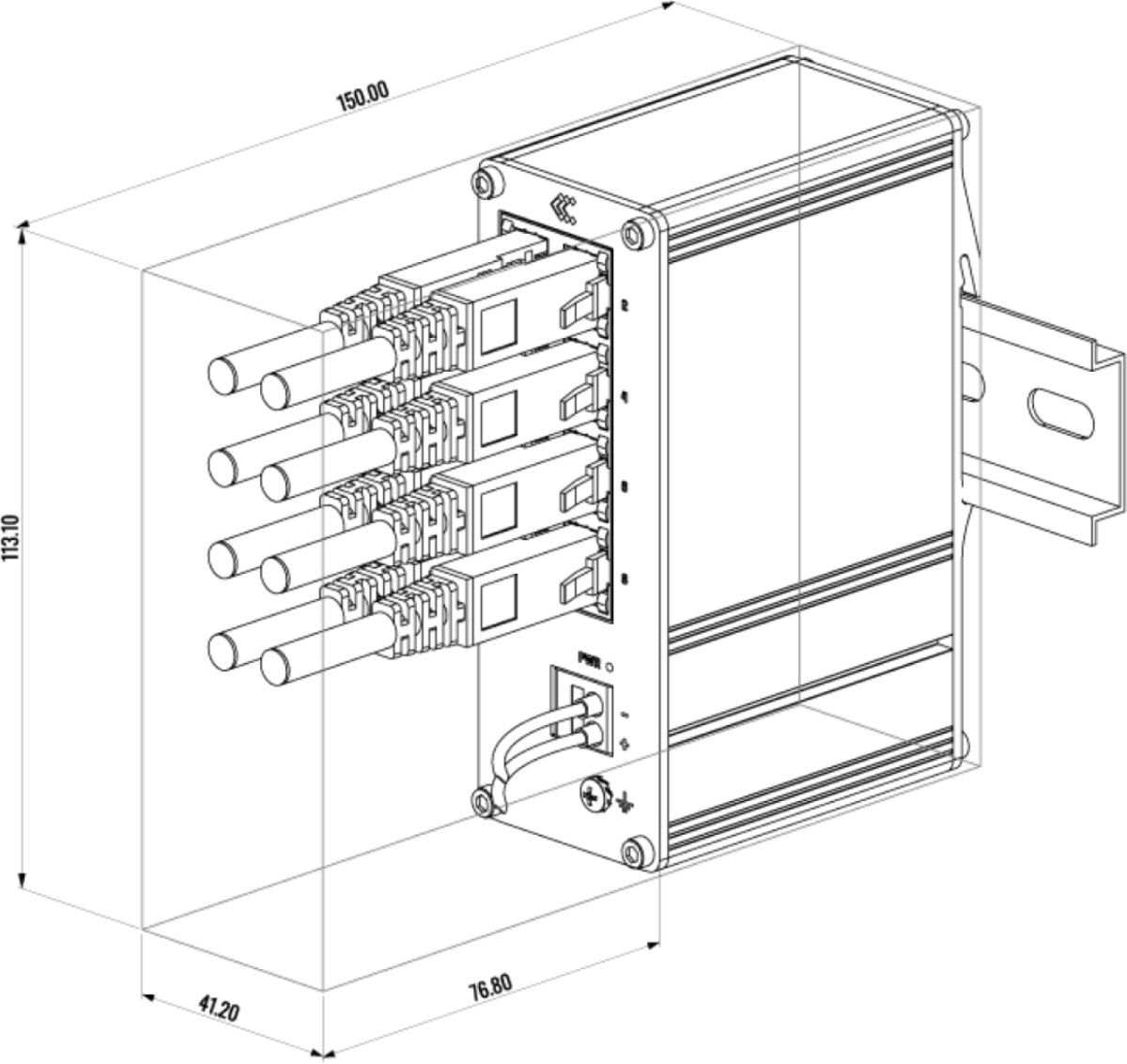

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

Teltonika TSW030

Key features

  • 8 LAN ports with speeds up to 100 Mbps
  • Compact size
  • DIN rail mounting option
  • Plug and Play - No additional configuration needed

Package contents

  • Device
  • QSG (Quick Start Guide)
  • Packaging box

Download

https://download.discomp.cz/Teltonika/Datasheets/tsw030-datasheet-v11.pdf
Download Datasheet
https://wiki.teltonika-networks.com/view/QSG_TSW030
Download Link to Quick Start Guide
https://wiki.teltonika-networks.com/view/TSW030_Manual
Download Link to User Manual

Technical parameters

LAN ports
Protection class
IP30
Design
Desktop, DIN rail, Industry
Switchning capacity [Gbps]
20
MAC address table
2000
Jumbo frame [Bytes]
9216
Purpose
Indoor
Power type
DC terminal
Fans
No
LAN ports
5
LAN speed
(8) 10/100Mbps
Max. LAN ports speed
100M
Max. power consumption [W]
1,5
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
256
Width [mm]
113
Height [mm]
41
Depth [mm]
75
