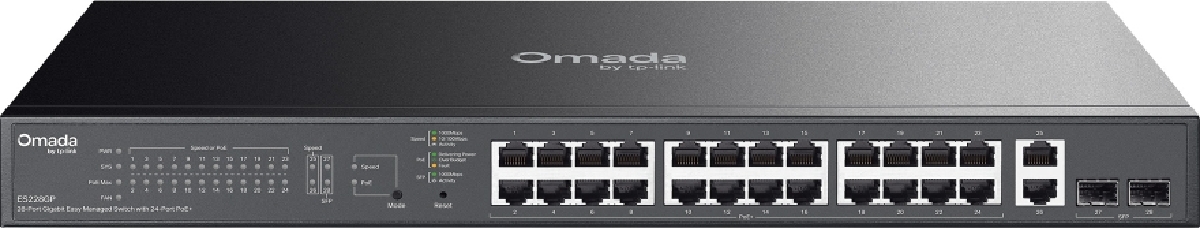

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
Your price incl. VAT (20.0%)
232.03 EUR
Ordered for stock
No confirmed delivery date
Product description

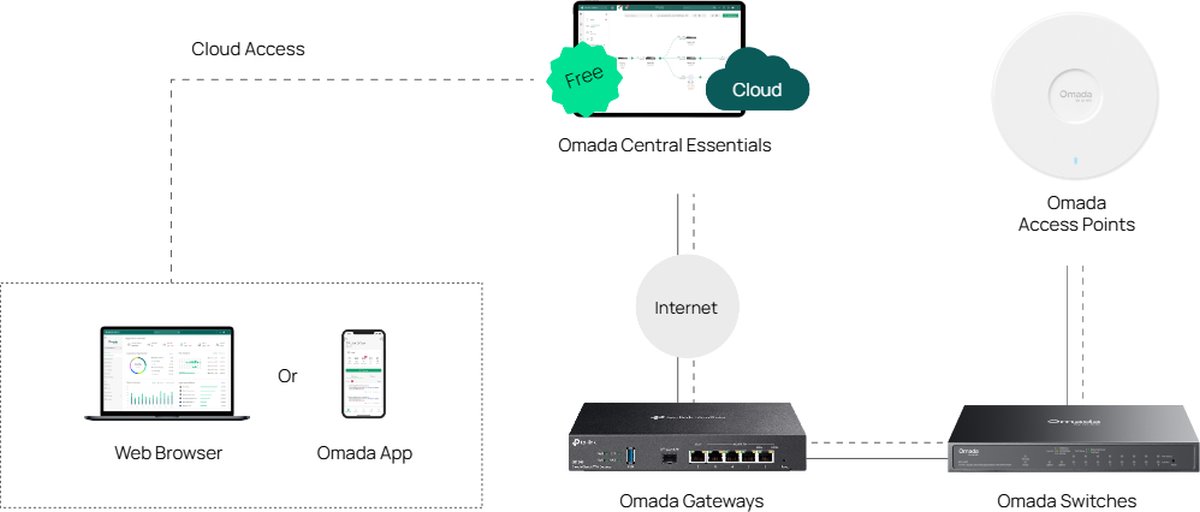

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Key features

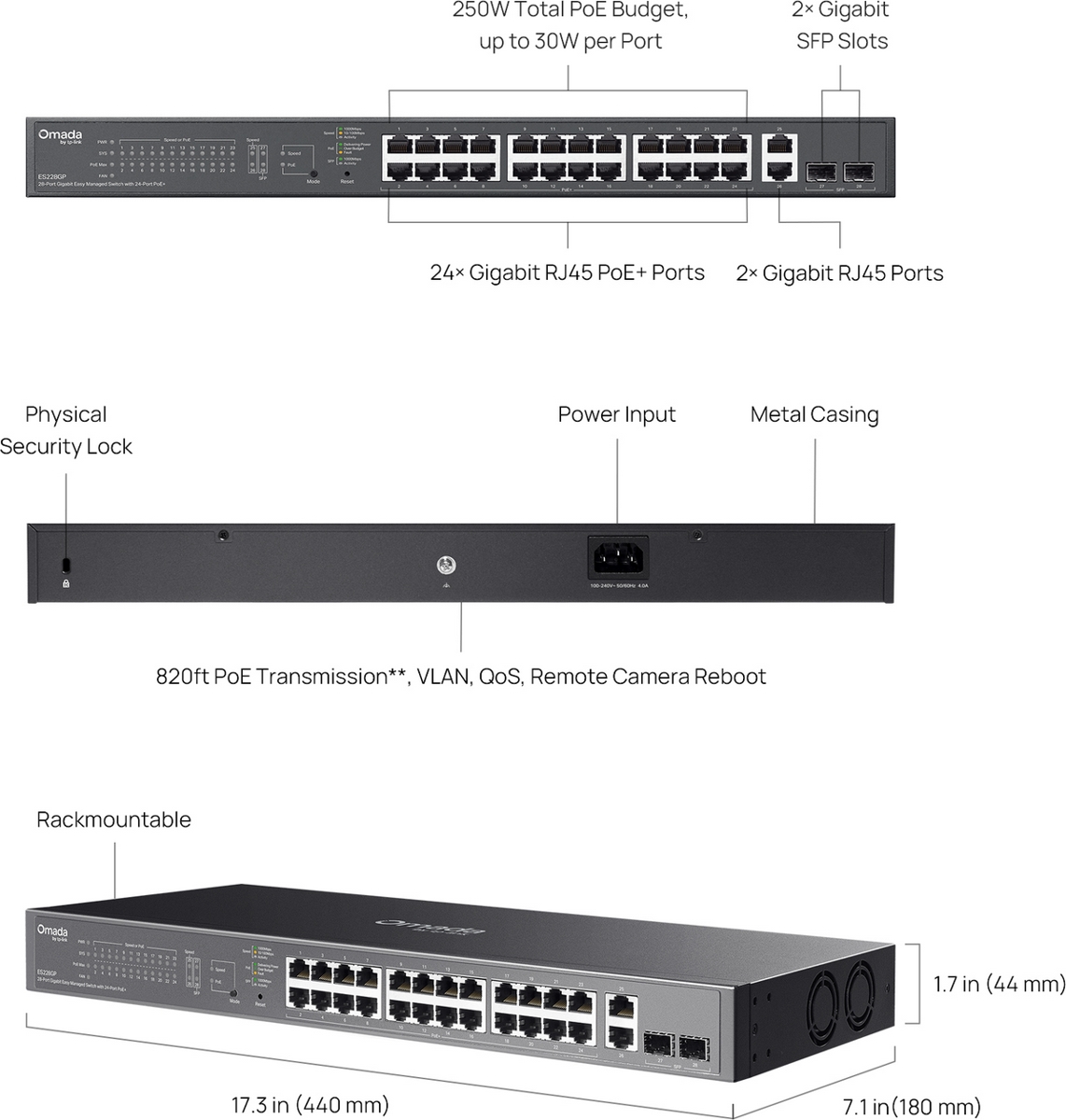

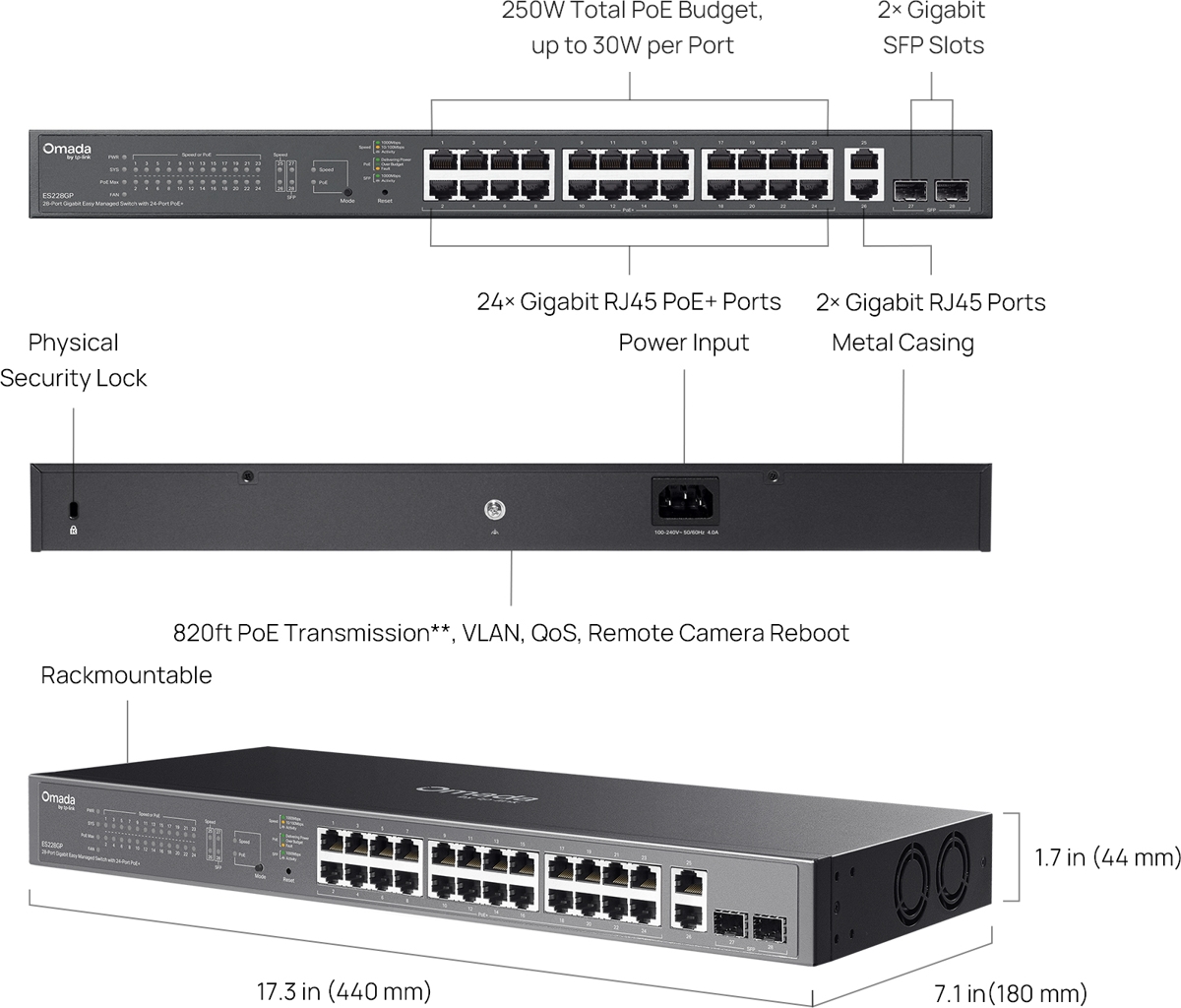

- 24× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W PoE Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE with 10Mbit speed, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design

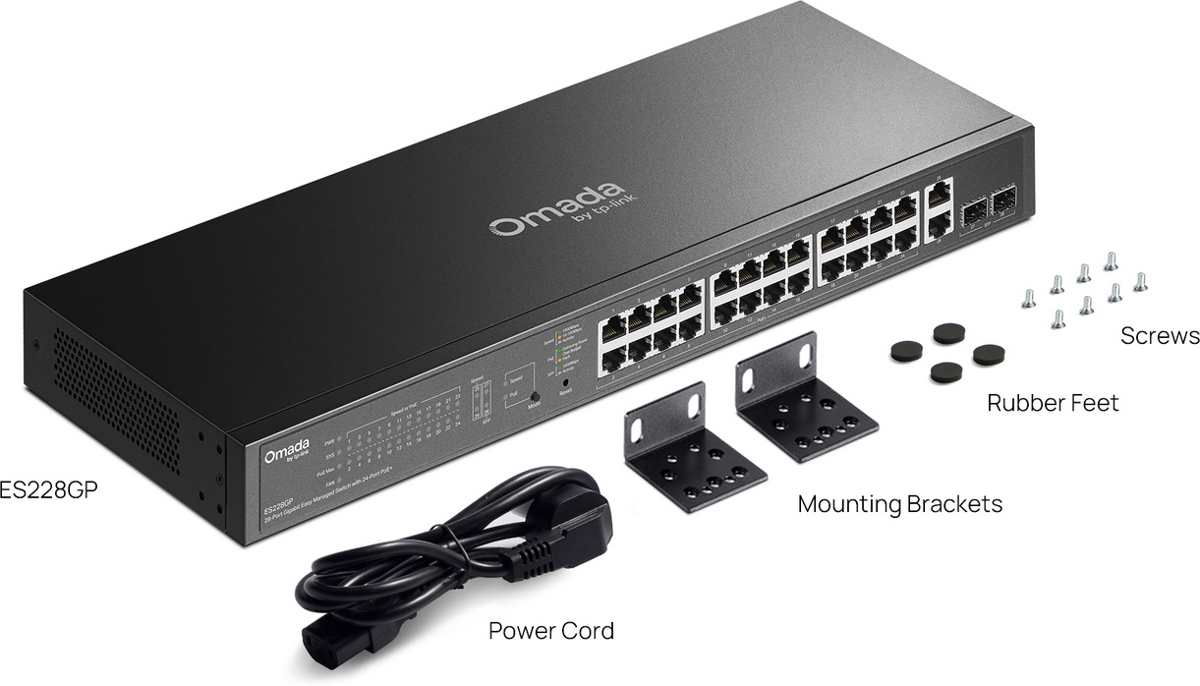

Package Content
- Switch
- Power Cord
- Mounting Brackets
- Screws
- Rubber Feet
- Installation Guide
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
41,7
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS, L2
Power type
Mains power (230V)
Fans
Yes
LAN ports
26
LAN speed
(26) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
250
Long range PoE - up to 250m
Yes
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Operating temperature [°C]
-5 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
180
Default IP address
192.168.0.1
Default login and password
admin / admin
