Rack mount kit 19" for Hikvision NVR/DVR 1U 380/385mm wide, supported models DS-72xx, DS76xx19" 1U 380 MOUNTING BRACKET
3.14 EUR excl. VAT
91.37 EUR excl. VAT
164.48 EUR excl. VAT
Download
Technical parameters
LAN ports
USB ports 3.0
1
Design
Desktop, Rackmount
Number of Sata connectors
2
VGA connector
Yes
Technology and conveniences
AcuSense, License Plate Recognition, Face detection, Vehicle detection
Number of supported IP cameras
16
Number of supported HDD
2
Supported HDD capacity [TB]
20
HDMI interface (resolution) [pixels]
4096 x 2160 (4K UHD)
Audio
1 input, 1 output
Alarm
Yes
Power type
DC connector
"U" positions
1
LAN speed
(2) 10/100/1000Mbps
Max. power consumption [W]
50
Incoming bandwidth [Mb/s]
192
Outgoing bandwidth [Mb/s]
256
USB ports 2.0
1
Power via connector/terminal
12V DC
Video compression
H.264, H.265
Operating temperature [°C]
-10 up to 55
Weight [g]
4000

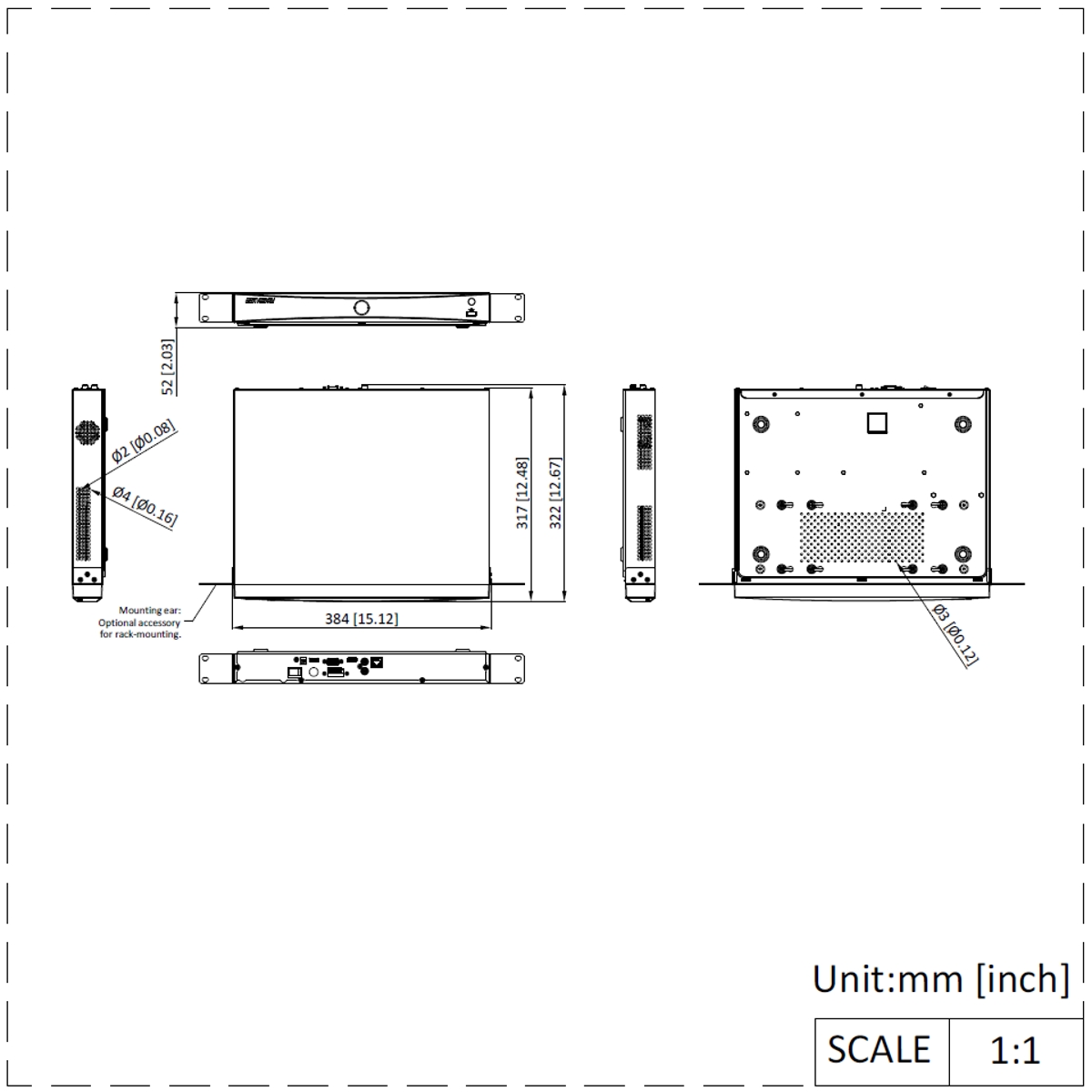

Width [mm]
384
Height [mm]
52
Depth [mm]
371
Max. recording resolution
32MP
HDMI interface
Yes
