Product description

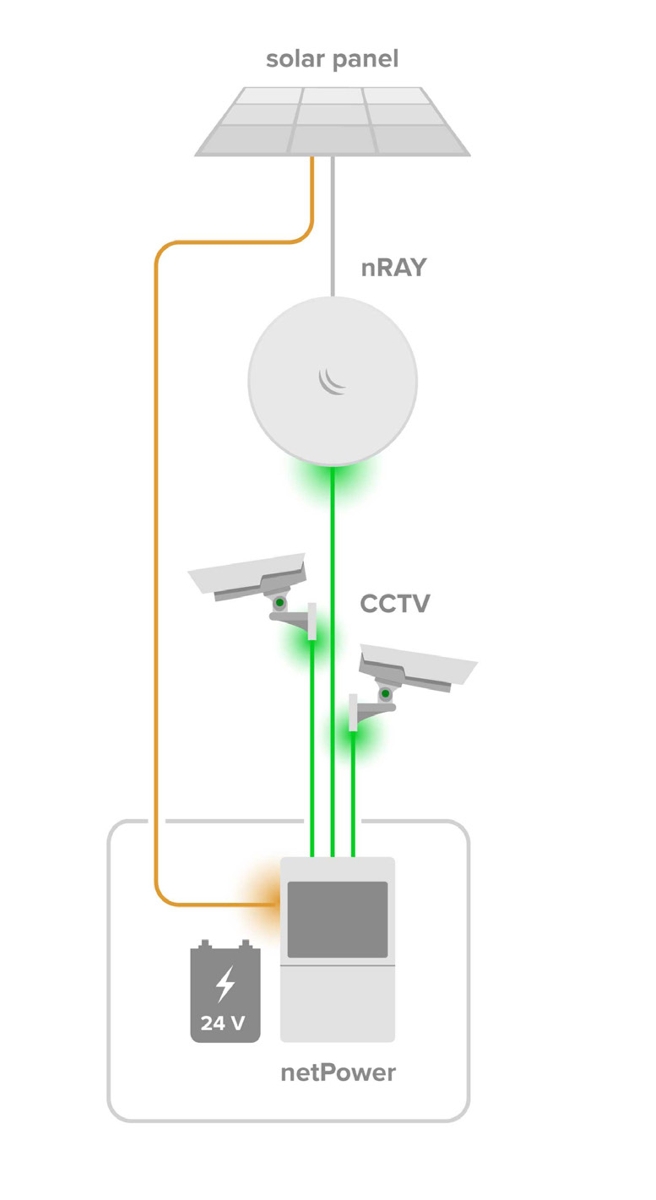

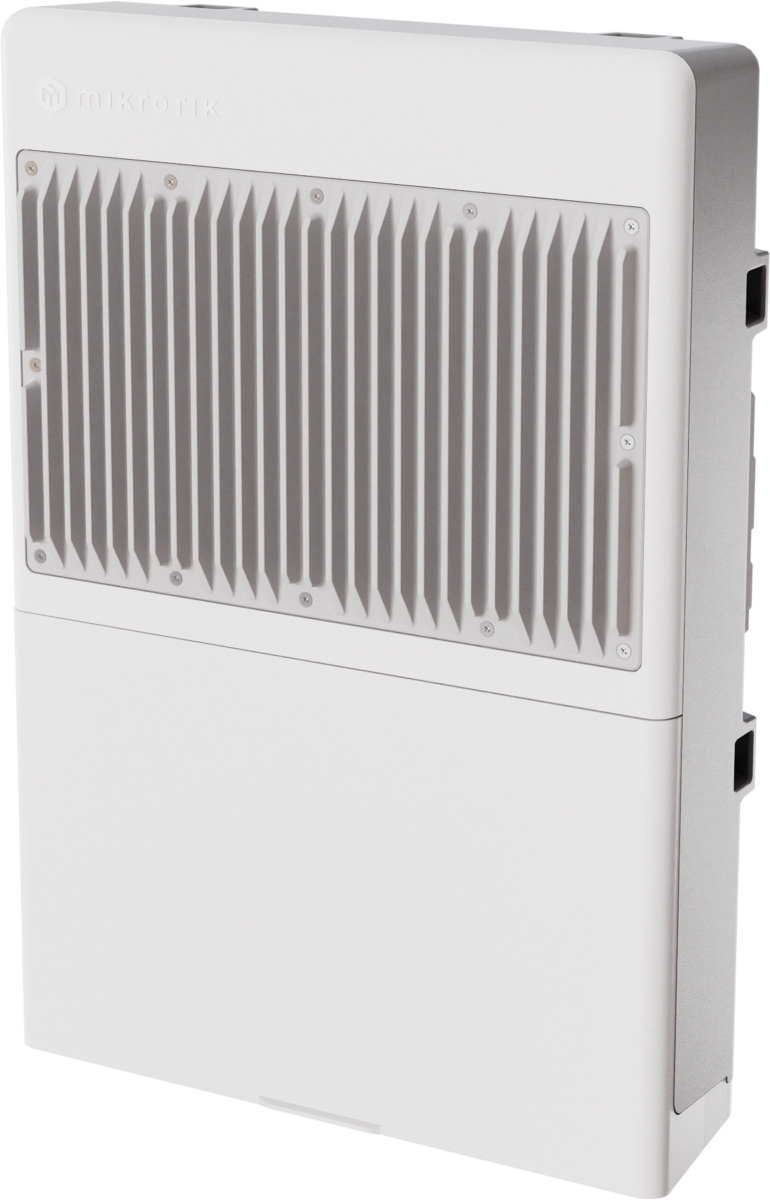

The MikroTik CSS610-8P-2S+OUT is a reliable outdoor managed PoE switch with UPS functionality and support for solar panel power input. It offers a switching capacity of 56Gbps, (8) 1Gbit PoE+ ports, (2) SFP+ slots, a smart battery charger and manages power flow between solar panels, the battery and the connected load. Maximum power consumption is 7W (without load).

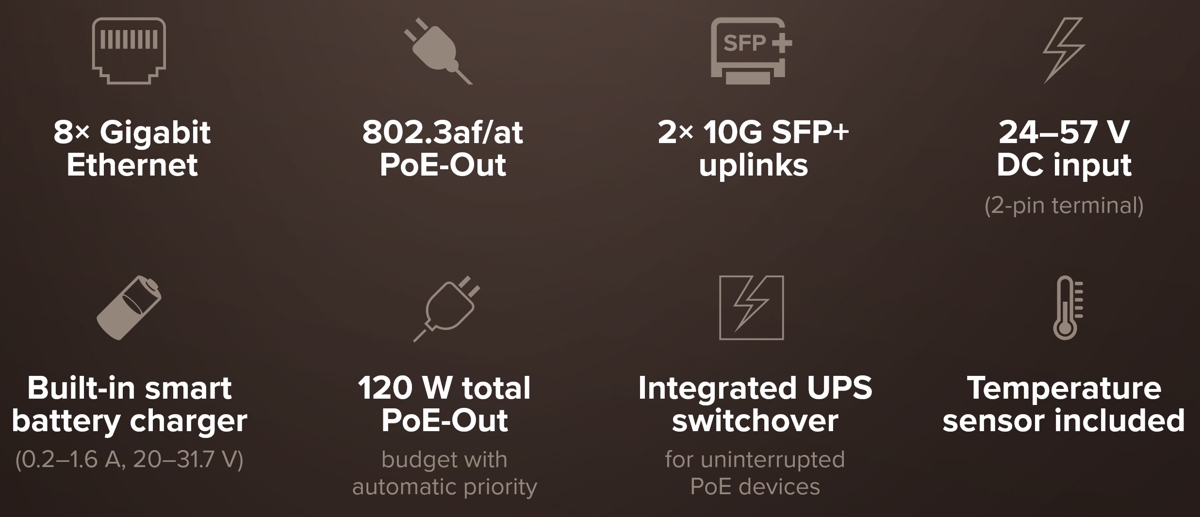

Key features
- (8) 1Gbit PoE+ ports and (2) SFP+ slots
- PoE+ 802.3af/at with a total budget of 120W
- SwOS Lite - a fast, efficient and refreshingly simple to manage operating system
- Alarm input - connect a simple 2-wire contact for tamper detection
- UPS - supports flooded, AGM and gel lead-acid batteries, as well as LiFePO4 batteries with a proper BMS
- Flexible power options - powered by a battery or via a 24-57V DC terminal
Package contents
- Device
- (2) Hose clamps
- (4) Screws and wall anchors
- Temperature sensor
Download
Technical parameters
LAN ports
Switchning capacity [Gbps]
56
MAC address table
16000
Jumbo frame [Bytes]
10218
Packet forwarding rate [Mpps]
41,7
Web management
Yes
Management
Web management
Features
L2
Power type
DC terminal, Battery
Operating system
SwOS
Fans
No
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Gigabit LAN
Yes
Max. LAN ports speed
1G, 10G uplink
PoE type
PoE-Out (only)
SFP+ cages
2
Optical interfaces
(2) 10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
120
Max. power consumption [W]
181
Power via connector/terminal
24 .. 57V DC
Operating temperature [°C]
-40 up to 70
Width [mm]
212
Height [mm]
78
Depth [mm]
303
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
64
Default login and password
admin / (preset password, see label/engraving)
