Ubiquiti EdgeSwitch ES-16-XG
Your price incl. VAT (20.0%)
597.82 EUR
Ordered for stock
Planned Delivery Date by Courier to you 09-04-2025
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.60 EUR excl. VAT
6.47 EUR excl. VAT
10.17 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.60 EUR excl. VAT
Product description

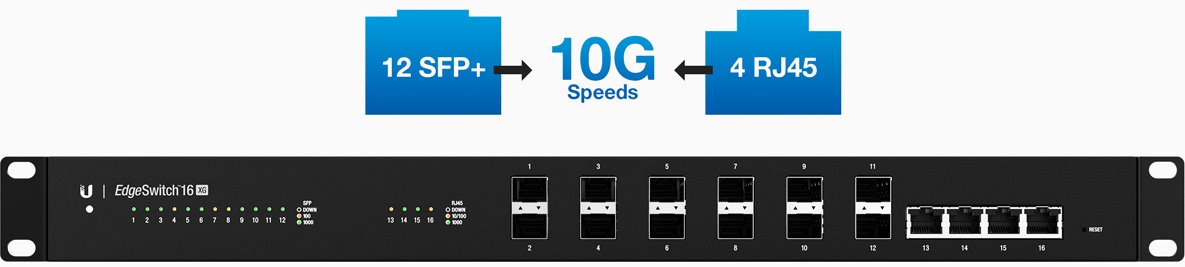

EdgeSwitch ES-XG-16 is a high performance optical switch suitable for building a 10Gbit network. EdgeSwitch ES-16-XG is fully managable switch containing 4x 10G Ethernet and 12x SFP+ ports with a total 320Gbps throughput. All ethernet and optical ports support 10G and 1G speed.
Redundant power
A big advantage is redundant or direct DC power supply. Switch can be powering with 230V AC input and 2.5mm DC connector with variable power from 16 to 25V.
Software

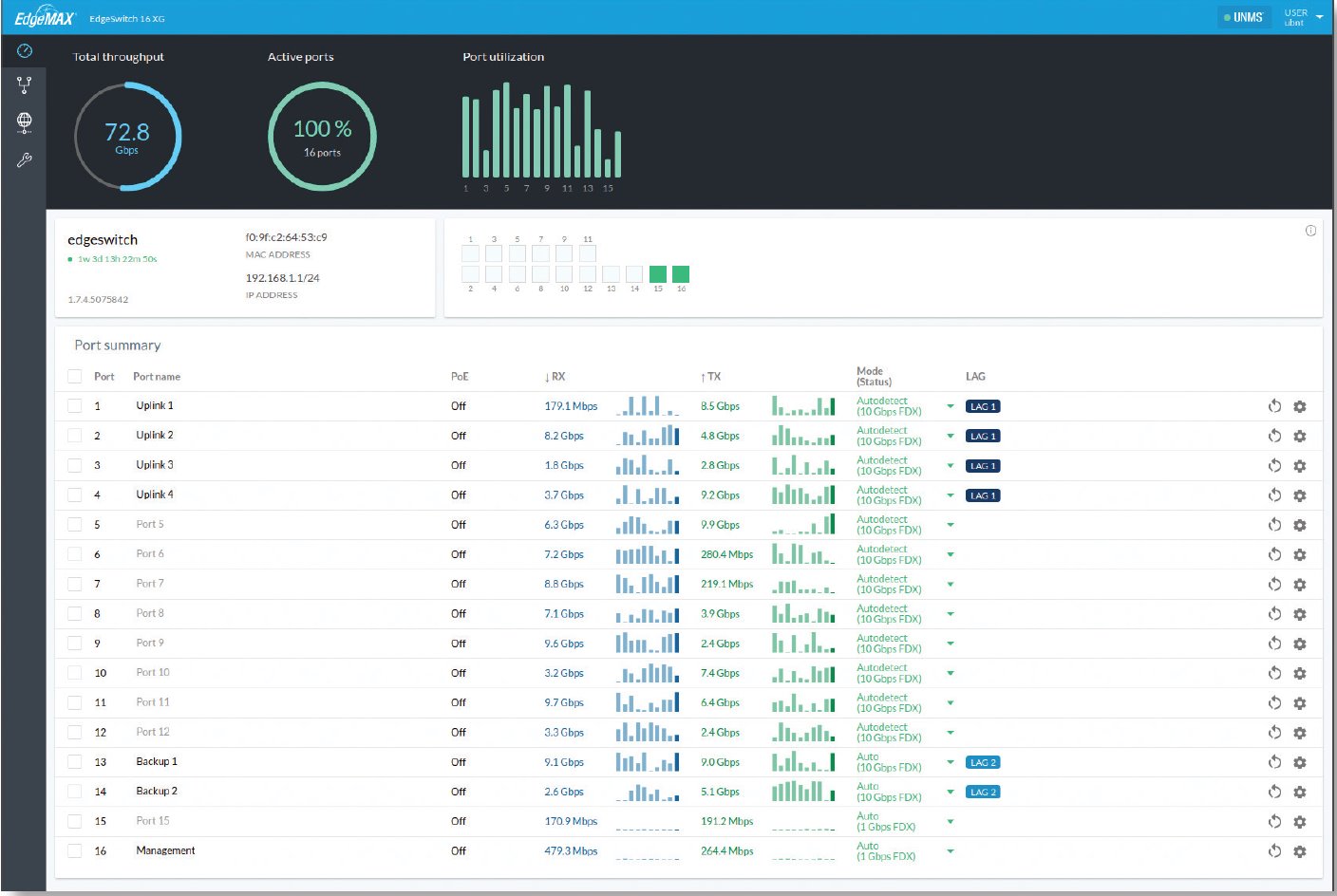

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Package contains
- Device
- Power cord
- Rackmount kit
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
320
MAC address table
16000
Packet forwarding rate [Mpps]
238,1
Web management
Yes
Management
Web management, SSH, Telnet
Features
VLAN, QoS, L3, DHCP snooping
Power type
Mains power (230V), DC connector
Fans
Yes
LAN ports
4
LAN speed
(4) 1G/10Gbps
Max. LAN ports speed
10G
SFP+ cages
12
Optical interfaces
(12) 1G/10Gbps
Redundant power supply
Yes
Max. power consumption [W]
36
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC, 16 .. 25V DC
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
443
Height [mm]
43
Depth [mm]
221
Default IP address
192.168.1.2
Default login and password
ubnt / ubnt
