Ubiquiti NanoBeam 2AC-13, 2.4GHz MIMO, 13dBi
Your price incl. VAT (20.0%)
94.64 EUR
Ordered for stock
No confirmed delivery date
8.02 EUR excl. VAT
Product description
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio

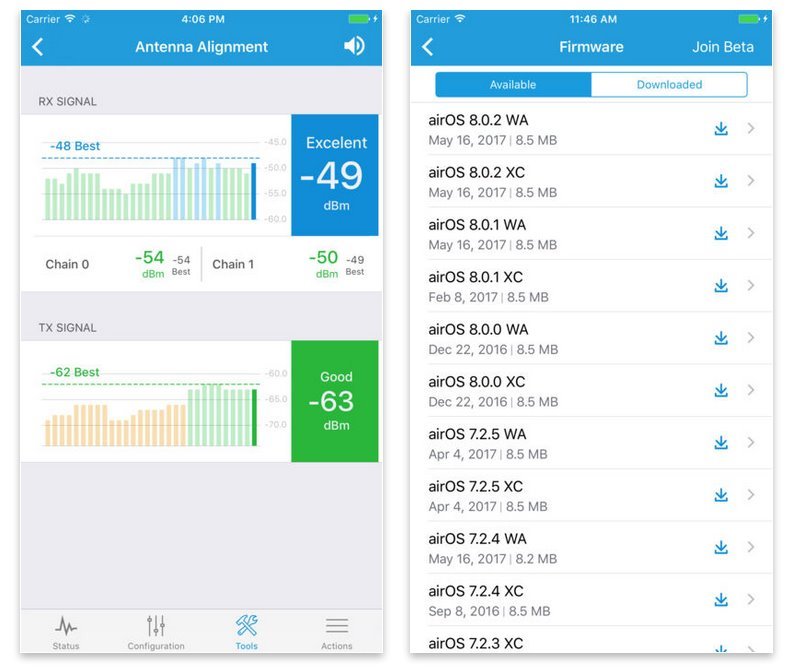

The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

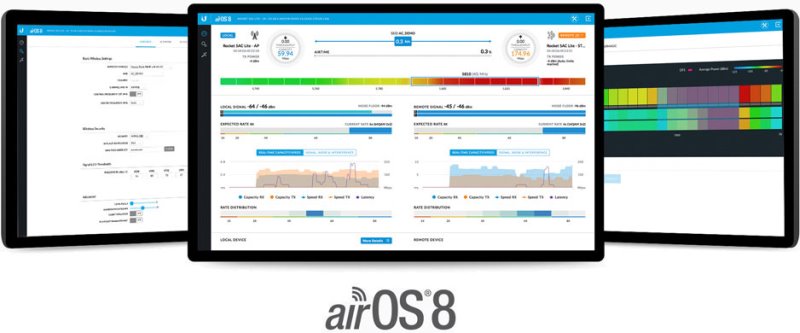

Now with airOS 8
airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Package contains
- Device
- Gigabit PoE power adapter 24V/0.5A
- Power cord
- Metal strap
- Ball joint mount + lock ring
Download
Technical parameters
LAN ports
Power over Ethernet
24V DC
Operating mode
AP Router, Client, Client Router (wisp), Access Point, Repeater
Wireless frequency
2.4 GHz
WiFi standards
airMAX ac
Transmission speed - 2.4GHz [Mb/s]
433
Tx power 2.4GHz [dBm]
27
Security
WPA2 AES
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
13
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
530
Width [mm]
189
Height [mm]
189
Depth [mm]
125
CPU
Atheros MIPS 74KC
CPU frequency [MHz]
533
IPv6 support
Yes
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
Other features
WiFi management radio
