MikroTik RouterBOARD RBcAPGi-5acD2nD, cAP ac, 300+866Mbps

MikroTik RouterBOARD RBcAPGi-5acD2nD, cAP ac, 300+866Mbps
Your price incl. VAT (20.0%)
74.72 EUR
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
MikroTik
Manufacturer
Product number
RBcAPGi-5acD2nD
Product Code
RL005.067
Warranty
24 months

Product description

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.

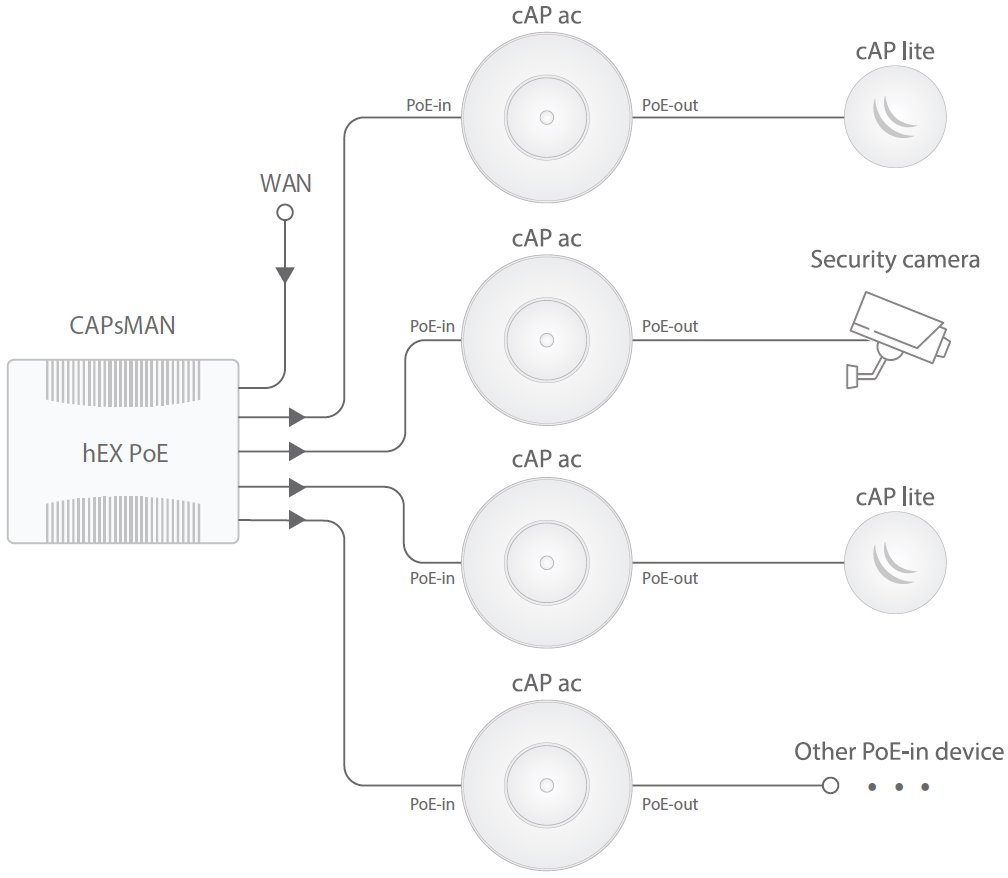

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port.

cAP ac

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with the push of a button - the customizable mode button in the device center will turn off all lights and sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.

Package contains

  • Device
  • Power adapter 24V/1.2A
  • Gigabit PoE injector
  • Ceiling mount kit

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID007_RBcAPGi-5acD2nD_DOC_210906.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/cAP_ac_180119.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3af, 802.3at, 17 .. 57V DC
Tx power [dBm]
26
Design
On the wall
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11ac, 802.11a, 802.11b/g, 802.11n
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Antenna gain [dBi]
2,5
Power type
PoE
Operating system
RouterOS - L4
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
PoE Out ports
1
Max. power consumption [W]
13
Operating temperature [°C]
-40 up to 70
Width [mm]
136
Height [mm]
30
Depth [mm]
136
CPU
IPQ-4018
CPU cores
4
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
128
Default login and password
admin / -
