Mimosa N5-45x2, sector slant antenna 45°, 19dBi, 2x N female
Planned Delivery Date by Courier to you 29-01-2025
Product description
The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.

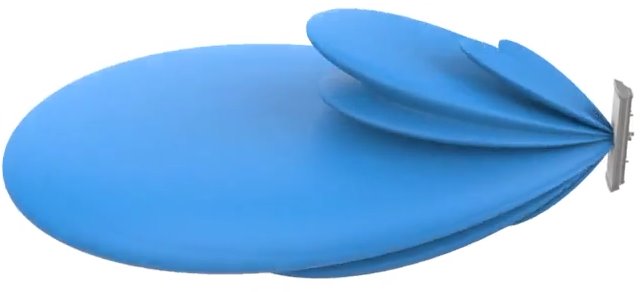

No Sidelobes
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42o half-power beamwidth with non-existent side lobes.
Industry’s Highest Front-to-Back Ratio

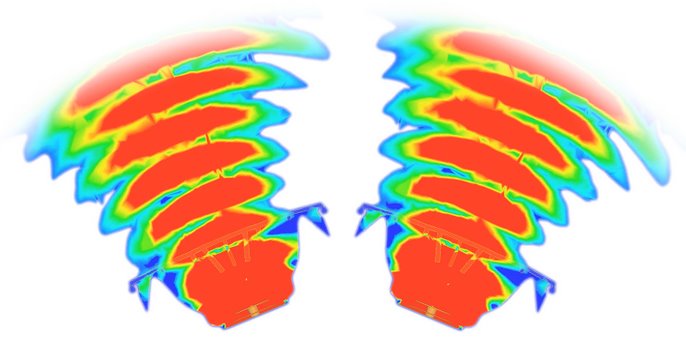

With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.
Supports Third-Party Access Points

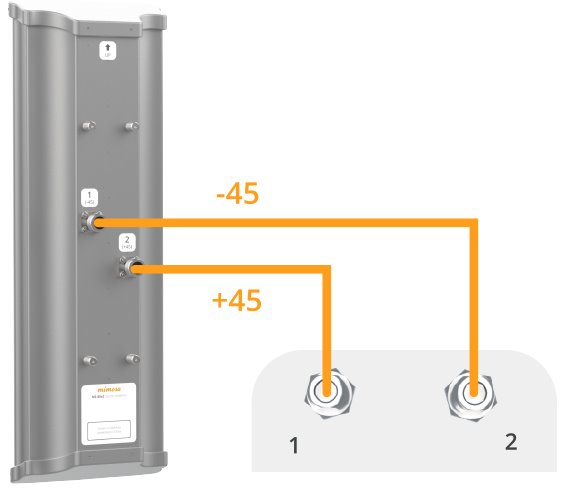

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.

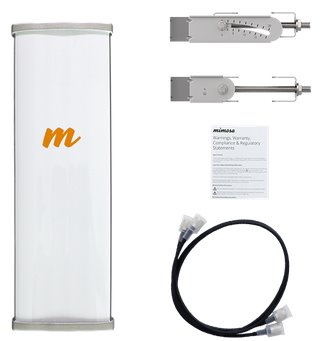

Package contains
- Device
- Holder
- (2) 1m pigtail N-male - N-male
