Ubiquiti sector antenna AirMax MIMO 16dBi 5GHz, 120°, rocket kit
Your price incl. VAT (20.0%)
77.38 EUR
Ordered for stock
Planned Delivery Date by Courier to you 12-03-2025
You have a choice of 4 variants
Product description

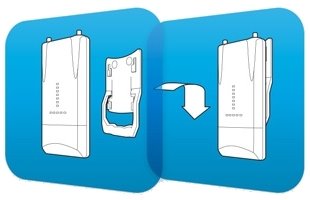

AM-5G16-120 airMAX Sector Antenna is a 16dBi Carrier Class 2x2 MIMO (Dual Polarity) Sector Antenna with 120° beam angle that was designed for 5GHz band and for integrate with Rocket M radios (RocketM sold separately).Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Package contains
- Antenna
- (2) RSMA male - RSMA male pigtail
- Holder + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
Designed for mast diameter [mm]
30 up to 80
Cross-Pol Isolation [dB]
22
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
118
Azimuth beam width (-6dB) [°]
137
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
16
Material
Aluminum, UV stabilized plastic
Weight [kg]
1,1
Width [mm]
63
Height [mm]
367
Depth [mm]
41
