MikroTik RouterBOARD RB1100x4, RB1100AHx4
Your price incl. VAT (20.0%)
222.16 EUR
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 20-11-2024
You have a choice of 3 variants
Product description

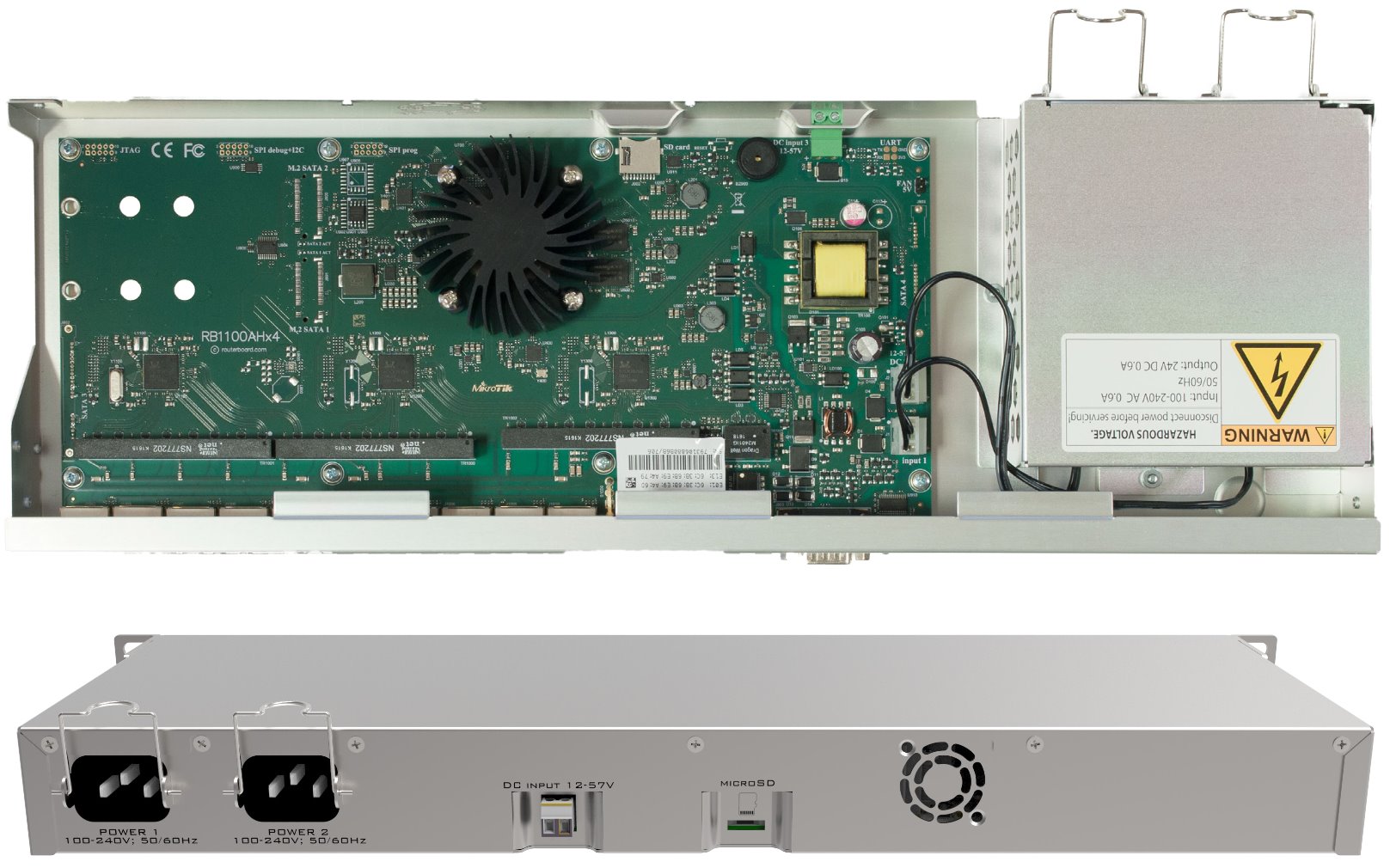

The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbps.
The RB1100AHx4 supports IPsec hardware acceleration, features two IEC failover power connectors, supports 802.3af/at PoE input and also have a DC telecom power connector for -48 V DC powering.
Package contains
- Device
- Rackmount ears + screws
- (2) power cord
Download
Technical parameters
LAN ports
Power over Ethernet
802.3at, 20 .. 57V DC
Design
Rackmount
Multiple WAN
Yes
Slot for Memory Card
microSD
Power type
Mains power (230V), PoE, DC terminal
Operating system
RouterOS - L6
Fans
No
LAN ports
13
LAN speed
(13) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Redundant power supply
Yes
Max. power consumption [W]
25
Serial port
RS-232
Chassis design
Metal
Power via connector/terminal
12 .. 57V DC, 230V AC
Width [mm]
444
Height [mm]
47
Depth [mm]
148
CPU
AL21400
CPU frequency [MHz]
1400
CPU cores
4
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
1024
Default login and password
admin / -
