Ubiquiti PowerBeam 5AC ISO Gen2, PBE-5AC-ISO-Gen2
Your price incl. VAT (20.0%)
132.07 EUR
Ordered for stock
Planned Delivery Date by Courier to you 21-05-2025
Manufacturer
Product number
PBE-5AC-ISO-Gen2
Product Code
RL007.265
Warranty
24 months
8.07 EUR excl. VAT
Product description
AirMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Management Wi-Fi Radio
This model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

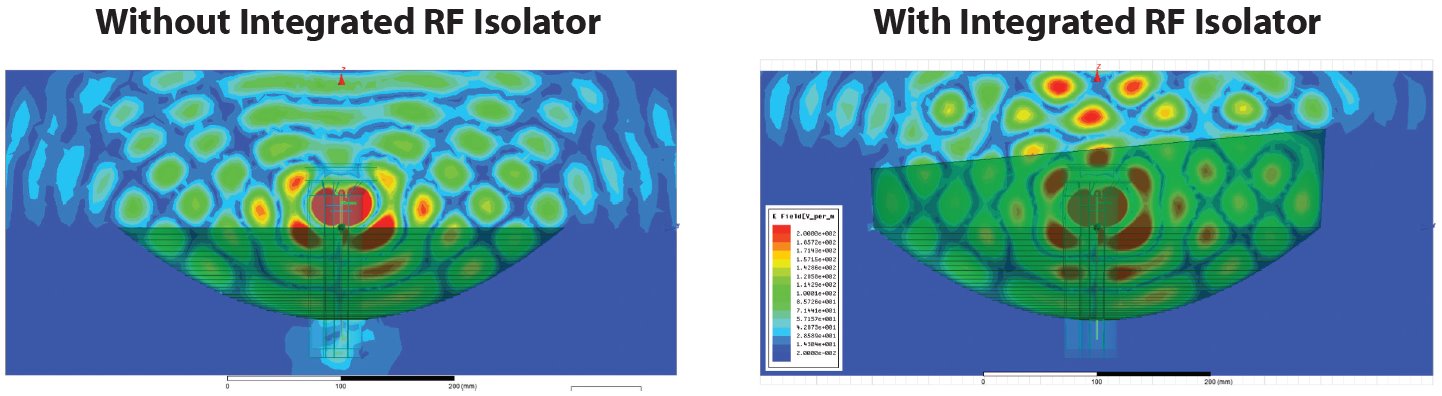

Superior RF Isolation
Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.
Software

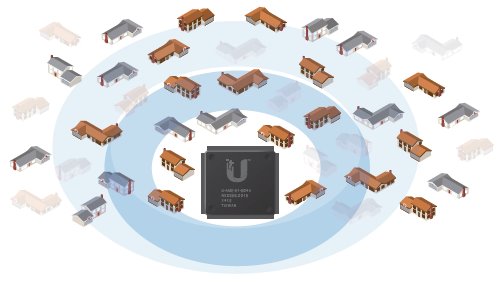

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide,? exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Package contains
- Device
- Parabolic antenna
- Holder
- Gigabit PoE injector adapter 24V/0.5A
- Power cord
- Plastic part - feed holder
- Radom cover
Download
Technical parameters
LAN ports
Power over Ethernet
20 .. 26V DC
Sensitivity [dBm]
-96
Frequency range [MHz]
5150 - 5875
Maximum modulation
256 QAM
Operating mode
Access Point, AP Router, Client, Client Router (wisp), Repeater
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
24
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
25
Collar
Yes
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
3220
Width [mm]
459
Height [mm]
459
Depth [mm]
261
CPU
MIPS 74Kc
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
Other features
WiFi management radio
