Mimosa N5-360, 2x 2x2 MIMO 180° sector antenna, 15dBi, 4x N female
Your price incl. VAT (20.0%)
298.62 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 05-03-2025
Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency - BazarB-100-00037-01(A5c-EF)
480.51 EUR excl. VAT
Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency100-00037-01(A5c-EF)
539.74 EUR excl. VAT
Product description

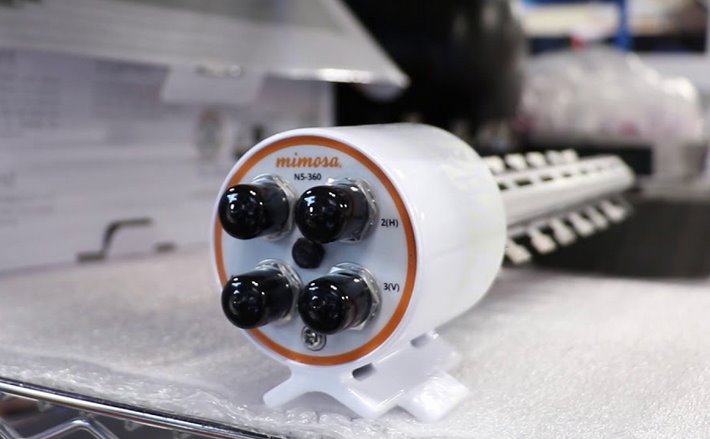

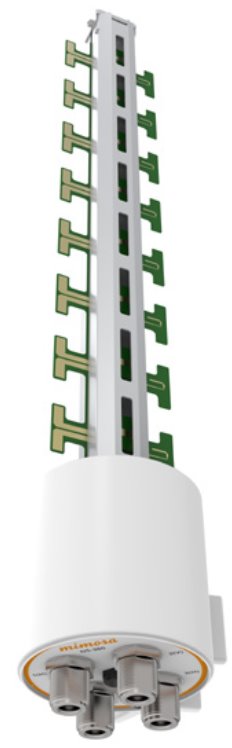

Introducing the industry’s first 4-port, beamforming, 360o antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180° overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360o of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.
Package contains
- Antenna
- (2) Metal ring
- (4) pigtail N-male - N-male
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Cross-Pol Isolation [dB]
25
Wind load [km/h]
160
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
8
Azimuth beam width (-6dB) [°]
360
Antenna type
Omnidirectional
RF connectors
(4) N female
Purpose
Outdoor
Antenna gain [dBi]
15
Weight [kg]
1,1
Width [mm]
80
Height [mm]
492
Depth [mm]
80
