Hikvision AX PRO Wireless Repeater

Hikvision AX PRO Wireless Repeater
Your price incl. VAT (20.0%)
105.19 EUR
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 02-10-2024
Hikvision
Manufacturer
Product number
DS-PR1-WE
Product Code
RL008.980
Warranty
36 months

Product description

DS-PR1-WE is a wireless signal repeater to extend the range of the high-frequency channel when transmitting an alarm event from the AX PRO series from Hikvision. The repeater communicates wirelessly in two-way communication with the control panel at a frequency of 868 MHz with AES-128 encryption. The repeater is powered from the mains by 230 V AC and has an integrated battery to keep the repeater on without power for up to 35 hours.

Important features

  • Compatible with AX PRO only
  • 868MHz two-way communication, Tri-X and Cam-X communication protocol
  • Automatic pairing and PIRCAM pairing
  • Serial port: 2× for debugging purposes
  • Contains a battery, 35 h life
  • Power supply: 100 V AC - 240 V AC
  • Tamper-proof front and back panel

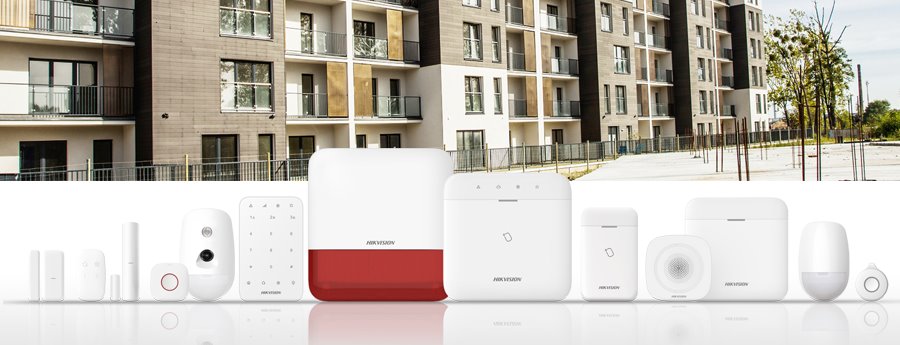

AX PRO alarm system

AX PRO is an innovative wireless security system from the renowned manufacturer Hikvision. It is a variable alarm system that includes a large number of detectors and sensors and can be used in virtually any situation. It has an unprecedented range of wireless connection (up to 2 km) and can cover really large and rugged spaces. The devices are compatible with the new Hik-ProConnect application and can communicate with other Hikvision devices. The entire system can be managed remotely via the cloud, giving installers the ability to provide customer support without the need to travel to the site.

Hikvision AX PRO

Download

https://download.discomp.cz/hikvision/datasheets/DS-PR1-WE.pdf
Download Datasheet
https://download.discomp.cz/hikvision/qsg/white_paper-axpro.pdf
Download AX PRO White Paper

Technical parameters

LAN ports
Purpose
Indoor
Connection type
Wireless
Power via connector/terminal
230V AC
Operating temperature [°C]
-10 up to 55
Weight [g]
372
Width [mm]
150
Height [mm]
150
Depth [mm]
25
Color
White
