Ubiquiti sector antenna AirMax MIMO 13dBi 900MHz, 120°, rocket kit
Your price incl. VAT (20.0%)
265.46 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 05-03-2025
Product description

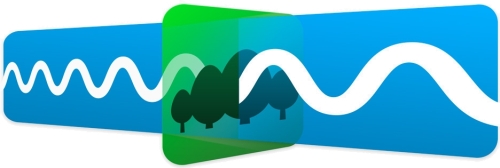

AM-9M13-120 airMAX Sector Antenna is a 13dBi Carrier Class 2x2 MIMO (Dual Polarity) Sector Antenna with 120° beam angle that was designed for 900MHz band and for integrate with RocketM radios (RocketM sold separately).900MHz band is better than higher frequency bands in Non-Line-of-Sight (NLOS) applications.

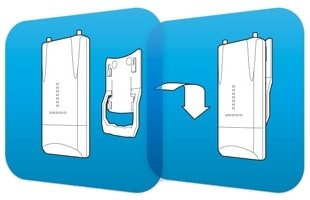

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Package contains
- Antenna
- (2) RSMA male - RSMA male pigtail
- Holder + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
Cross-Pol Isolation [dB]
30
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
900 MHz
Elevation beam width (-6dB) [°]
120
Azimuth beam width (-6dB) [°]
109
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
13
Material
Aluminum, UV stabilized plastic
Weight [kg]
12,5
Width [mm]
290
Height [mm]
1290
Depth [mm]
134
