Ubiquiti UVC-AI-360 - Fisheye UniFi video camera, 5MP, 360°

Ubiquiti UVC-AI-360 - Fisheye UniFi video camera, 5MP, 360°
Your price incl. VAT (20.0%)
440.86 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Product number
UVC-AI-360
Product Code
RL021.421
Warranty
24 months

Product description

The Camera AI 360 (AI 360) is a pan-tilt-zoom (PTZ) camera that provides panoramic, overhead surveillance of heavily populated indoor and outdoor areas. The AI 360 streams sharp 1920x1920 video at a smooth 30 frames per second (FPS), and its built-in IR LEDs ensure that every frame is crystal clear—day or night. Equipped with a 5 MP CMOS sensor and an ultra-wide, 360° fisheye lens, the AI 360 can quickly detect finite details within its expansive coverage area and capture them with pristine clarity. It's also protected with rugged, weather and tamper-resistant housing, making it an ideal choice for shopping centers, parking lots, airports, train stations, and other transportation hubs. The AI 360 is a sophisticated, feature-rich camera, but it's also designed to be incredibly easy to set up and incorporate into existing Protect deployments. It can be adopted in minutes and managed with either the UniFi Protect web application or mobile app.

UVC-AI-360

Key features

  • 5MP CMOS sensor, 1920 x 1920px resolution with 30 fps
  • Ultra-wide, 360° fisheye lens
  • Outdoor and indoor, IPX4-rated, weatherproof housing
  • IK08-rated tamper resistance
  • Built-in IR LEDs for clear nighttime surveillance
  • Powering over PoE - 802.3af, max. power consumption 8,6 W

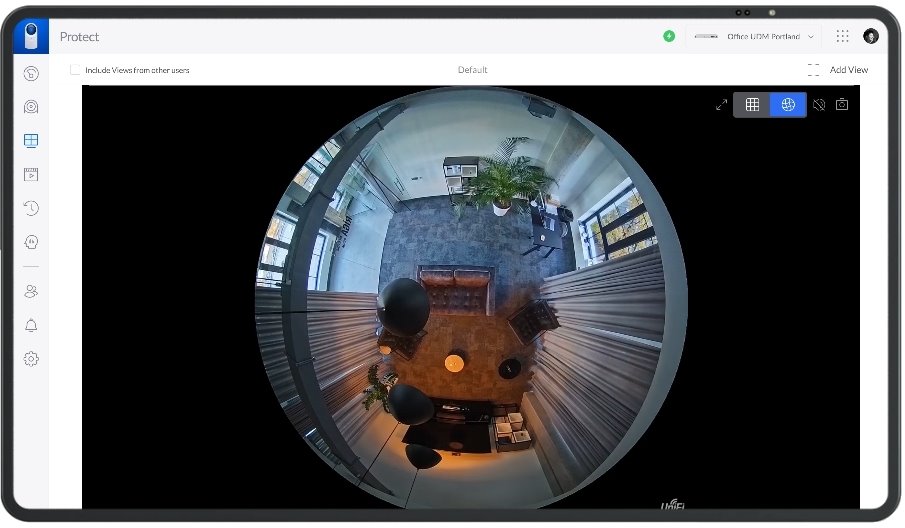

  • Managed with the UniFi Protect application: Version 1.19.0 and later

Package contains

  • Device
  • Material for attachment to the wall or ceiling
  • Tool
  • Protective dome

Download

https://download.discomp.cz/ubiquiti/datasheets/uvc-ai-360_ds.pdf
Download Datasheet
https://download.discomp.cz/ubiquiti/qsg/uvc-ai-360.pdf
Download Installation guide

Technical parameters

LAN ports
Power over Ethernet
802.3af
Resolution
5MP
Protection class
IPX4
Camera class
UniFi Protect
Lens type
Fixed
Illumination
IR
Illumination range [m]
5
Purpose
Outdoor
Max. resolution [pixels]
1920 x 1920
Audio
Microphone, Speaker
Viewing Angle [°]
360
Day/night mode
IR cut filter
Antivandal (Impact protection)
IK8
Power type
PoE
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
8,6
Video compression
MJPEG, H.264
Operating temperature [°C]
-20 up to 40
Weight [g]
655
Width [mm]
147
Height [mm]
49
Depth [mm]
147
Color
Black
Default IP address
Dynamic from DHCP, 192.168.1.20
Default login and password
ubnt / ubnt
