TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch
Your price incl. VAT (20.0%)
2,306.60 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 20-11-2024
3107.70 EUR excl. VAT
6.24 EUR excl. VAT
9.83 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.13 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.13 EUR excl. VAT
Product description
Omada SG6428XHP is a versatile L3 managed PoE+ switch, offering L3 routing, rapid 10 Gbps connectivity, stacking, and redundant power supplies, ideal for convergence layer applications. It boasts up to 720 W PoE budget, 24× gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, and physical stacking. With centralized management, robust security, and comprehensive management features, it is a dependable choice for SMB, enterprise, and ISP networks.
Key features
- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X

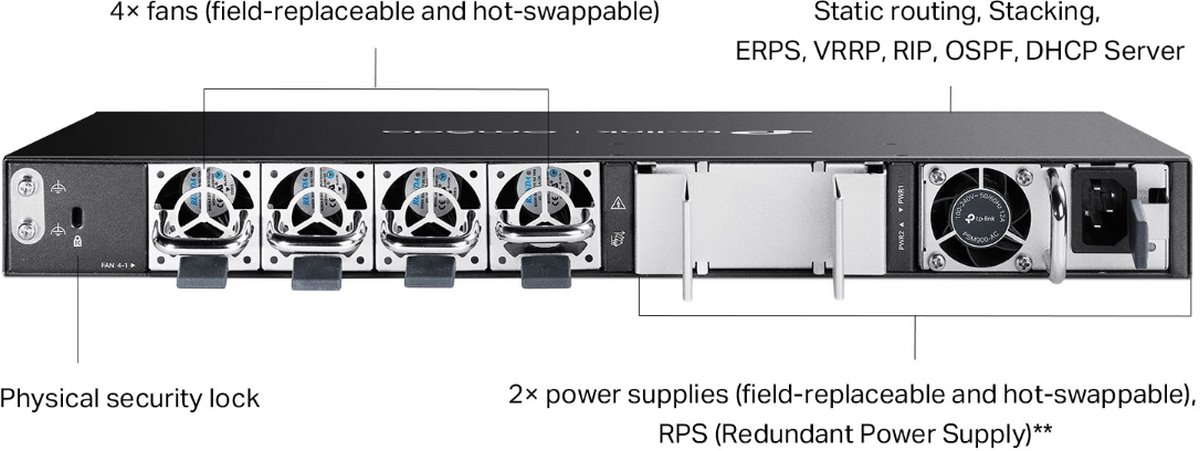

- Highly Available with two field-replaceable power supplies,VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Package contents
- Device
- Power cord
- RJ45 console cable
- Quick Installation Guide
- Rackmount Kit
- Rubber feet
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
128
MAC address table
32000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
95,2
Web management
Yes
Management
Omada controller, SSH, Telnet, Web management
Features
DHCP snooping, L3, QoS, Physical stacking, VLAN
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
PoE type
PoE-Out (only)
SFP+ cages
4
Optical interfaces
(4) 10Gbps
PoE-Out standards
802.3af, 802.3at
Redundant power supply
Yes
PoE Out ports
24
PoE budget [W]
720
Max. power consumption [W]
43
Serial port
RJ45, USB-C
Chassis design
Metal
USB ports 2.0
2
Power via connector/terminal
230V AC
Buttons
Switch mode
Operating temperature [°C]
0 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
420
Default IP address
192.168.0.1
Default login and password
admin / admin
