TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch
Вашата цена с ДДС (20.0%)
2,318.56 EUR
✅ В наличност < 10 Бр.
Планирана Дата Доставка на Куриер до Вас 02-10-2024
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукOmada SG6428XHP is a versatile L3 managed PoE+ switch, offering L3 routing, rapid 10 Gbps connectivity, stacking, and redundant power supplies, ideal for convergence layer applications. It boasts up to 720 W PoE budget, 24× gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, and physical stacking. With centralized management, robust security, and comprehensive management features, it is a dependable choice for SMB, enterprise, and ISP networks.
Key features
- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X

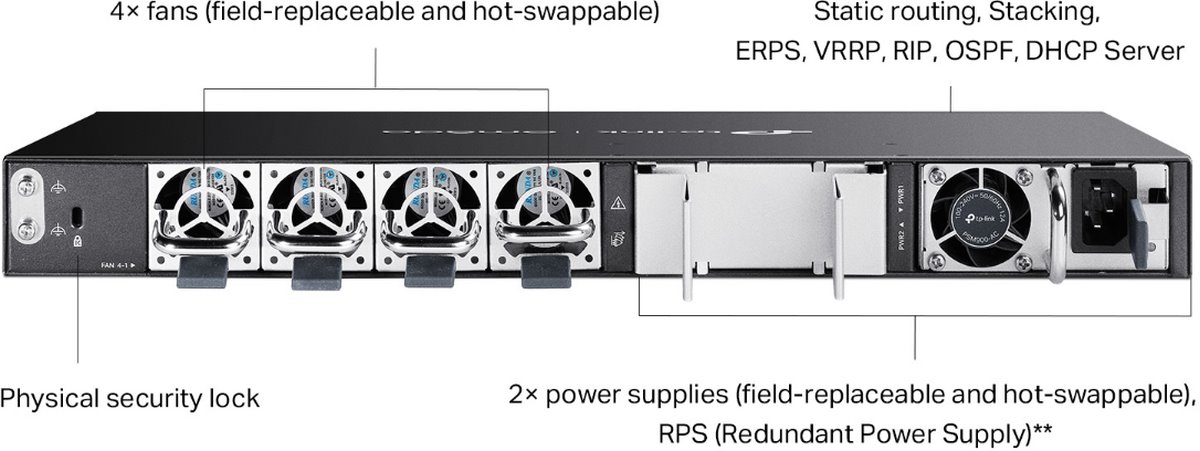

- Highly Available with two field-replaceable power supplies,VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Package contents
- Device
- Power cord
- RJ45 console cable
- Quick Installation Guide
- Rackmount Kit
- Rubber feet
Свали
Технически параметри
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
128
MAC address table
32000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
95,2
Web management
Yes
Management
Omada controller, SSH, Telnet, Web management
Features
DHCP snooping, L3, QoS, Physical stacking, VLAN
Power type
Mains power (230V)
Fans
(4) 40 x 40 mm
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
PoE type
PoE-Out (only)
SFP+ cages
4
Optical interfaces
(4) 10Gbps
PoE-Out standards
802.3af, 802.3at
Redundant power supply
Yes
PoE Out ports
24
PoE budget [W]
720
Max. power consumption [W]
43
Serial port
RJ45, USB-C
Chassis design
Metal
USB ports 2.0
2
Power via connector/terminal
230V AC
Buttons
Switch mode
Operating temperature [°C]
0 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
420
Default IP address
192.168.0.1
Default login and password
admin / admin
