TP-Link SG5428X - 24× Gigabit RJ45 port and 4× 10Gbps SFP+ slot - OMADA, L3
Your price incl. VAT (20.0%)
510.80 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 12-11-2025
You have a choice of 2 variants
6.23 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.10 EUR excl. VAT
2090.85 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.10 EUR excl. VAT
10.57 EUR excl. VAT
Product description

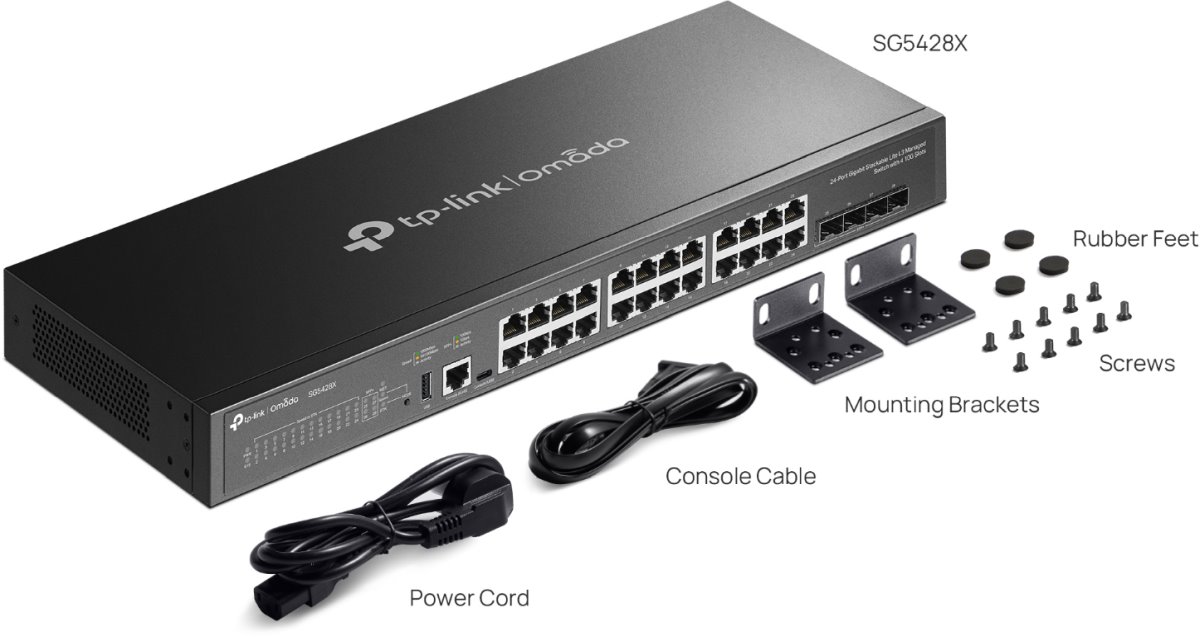

Omada SG5428X is a reliable switch that offers L3 routing, ultra fast 10Gbps Ethernet connectivity and stacking capabilities. The device has 24 Gigabit RJ45 ports, 4× 10Gbps SFP+ slots, physical stacking capability and centralized management. With integrated security features and extensive management capabilities the SG5428X provides a reliable networking solution for small and medium-sized businesses and Internet Service Providers (ISPs).
Key features

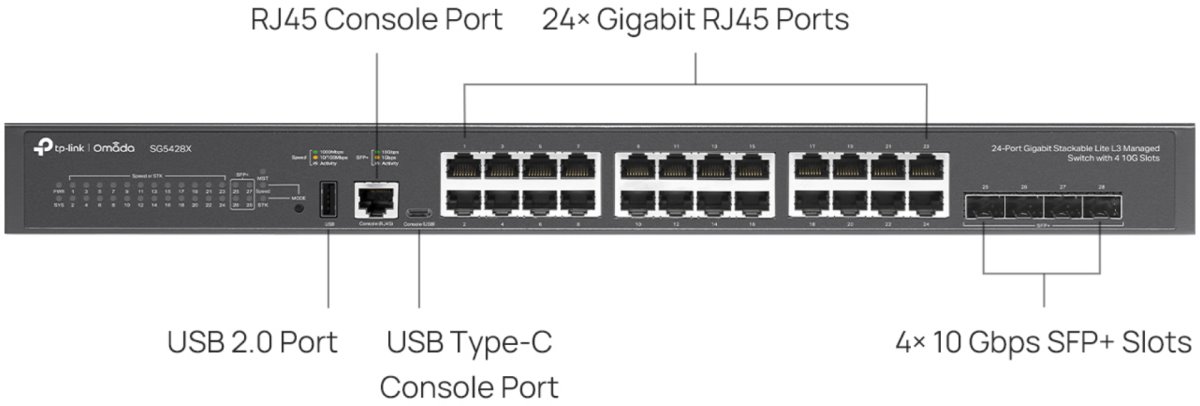

- 24× Gigabit RJ45 port and 4× 10Gbps SFP+ slot
- Switching capacity 128 Gb/s
- Physical stacking for up to 4 units
- L3 function: RIP, OSPF, static routing and DHCP server/relay
- Security features: ACL, port security, DoS attack protection, 802.1X
- ERPS supports protection and fast recovery in a ring topology
- Centralized cloud management through Omada SDN
- Management via web, CLI, SNMP and RMON
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
128
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
95,2
Web management
Yes
Management
Omada controller, SSH, Telnet, Web management
Features
DHCP snooping, L3, QoS, Physical stacking, VLAN
Power type
Mains power (230V)
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP+ cages
4 (1G/10G support)
Optical interfaces
(4) 1G/10Gbps
Max. power consumption [W]
20
Serial port
USB-C
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
100-240 V AC~50/60 Hz
Operating temperature [°C]
-5 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
180
