RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°

RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°
Your price incl. VAT (20.0%)
404.58 EUR
Ordered for stock
Delivery No confirmed delivery date
RF elements
Manufacturer
Product number
AH45WB
Product Code
RL029.116
Warranty
24 months

Product description

The AH45WB is a 6 GHz and 5 GHz sector "horn" antenna from RF elements, featuring a 45° asymmetric beam angle, 18.5 dBi gain, and a TwistPort connector. This antenna offers a perfect combination of features to address the key weaknesses of today’s mainstream sector antennas.

AH45WB

TwistPort Connector - Practical and Lossless

The TwistPort connector is practically lossless and revolutionizes established standards with its ease of use. There are no RF connectors or RF cables that cause significant signal losses. Compared to commonly used coaxial cables and connectors, the loss on TwistPort is almost immeasurable. Connecting and disconnecting is brilliantly simple and can be done with one hand.

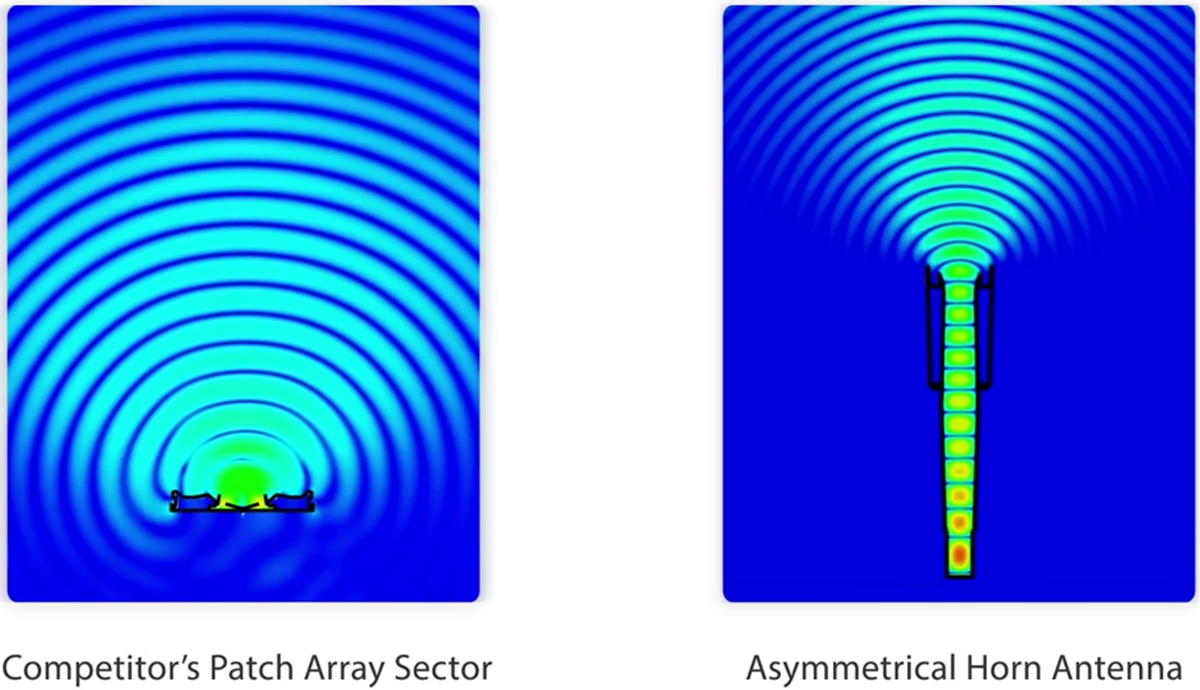

No Side Lobes

The AH45WB asymmetric antenna does not emit side lobes, focusing energy into a single main beam. This is one of the most important features in wireless networks. Thanks to these unique radiation characteristics, the antenna picks up significantly less noise compared to existing mainstream sector antennas. Noise issues are directly related to the side lobes of an antenna—an unavoidable aspect in most competing products. The AH45WB behaves differently, being virtually "deaf" outside the main beam.

AH45WB

Coverage Without Dead Zones

Traditional sector antennas have a specific coverage pattern—if the access point (AP) is too high, nearby clients suffer from poor signal quality. As the saying goes, "under the candlestick, it’s darkest." Asymmetric sector antennas emit signals with a circularly flattened beam shape. As a result, the coverage of asymmetric sector antennas is nearly without dead zones, satisfying clients located close to the AP.

AH45WB

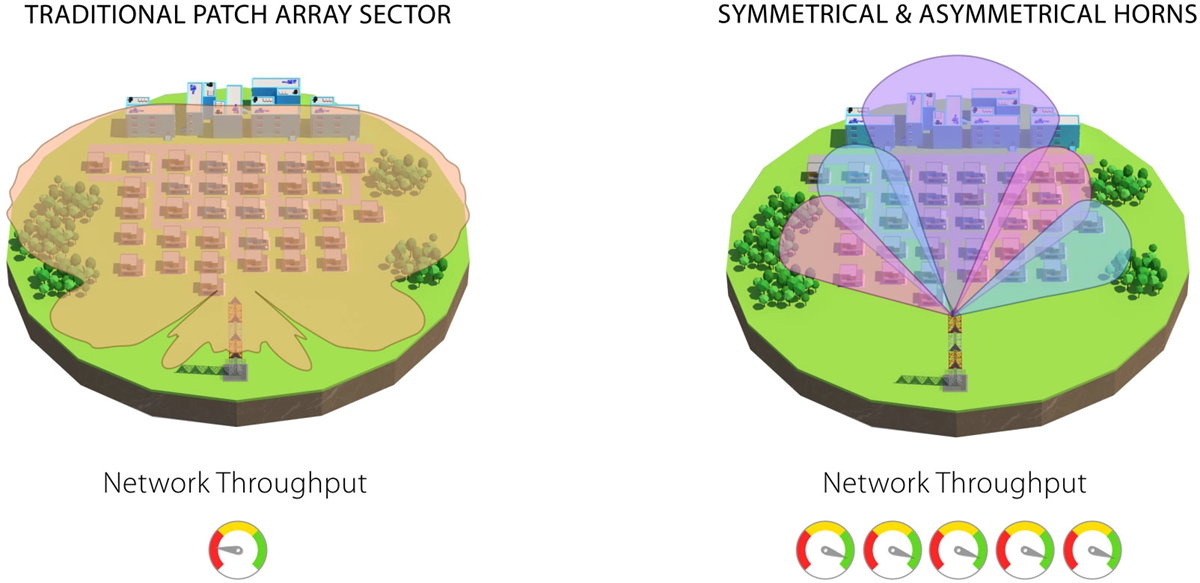

Excellent Scalability

Unique radiation characteristics, minimal side lobes, and extremely low back radiation allow multiple antennas to be placed at one point or multiple independent points to be built. This helps distribute the load across individual APs, increasing speeds for individual clients.

AH45WB

Platform Support

For third-party products, such as MikroTik, Ubiquiti, or Cambium, RF elements offers a wide range of adapters that enable easy connection of these devices to the TwistPort connector. This allows any unit to be moved to another antenna with a single click, without screwing in pigtails.

Package Contents

  • Antenna
  • Mounting bracket

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Wireless frequency
5 GHz, 6 GHz

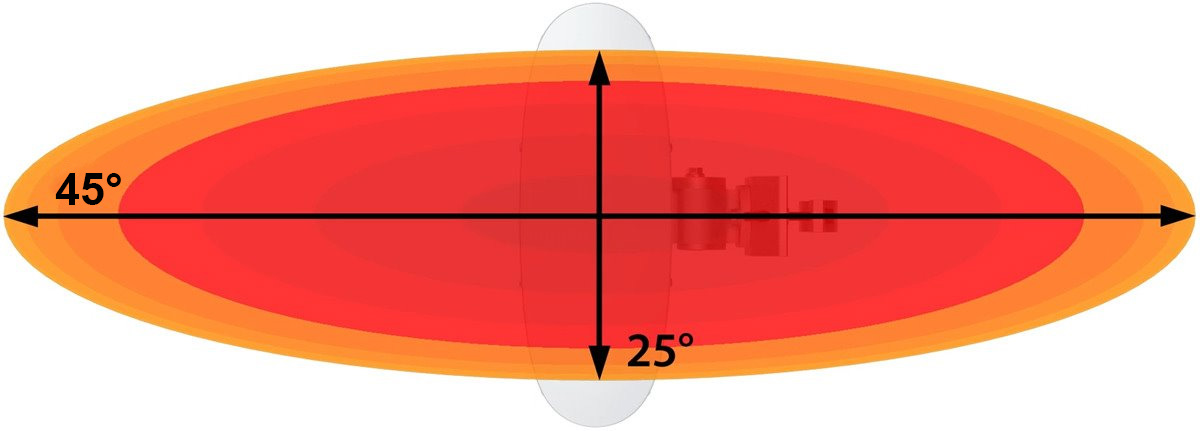

Azimuth beam width (-6dB) [°]
45
Elevation beam width (-6dB) [°]
25
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
18,5
