RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°

RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°
Вашата цена с ДДС (20.0%)
414.26 EUR
Поръчан за склад
Delivery Без потвърдена дата на доставка
RF elements
Производител
RF elements
Продуктов номер
AH45WB
Продуктов Код
RL029.116
Гаранция
24 месеца

Имате въпрос?
Имате избор от 3 варианта
RF elements Asymmetrical Horn Antenna Carrier Class, 5/6GHz, 17dBi, 60°
AH60WB
345.22 EUR без ДДС
RF elements Asymmetrical Horn Wideband Antenna, 6/5 GHz, 15dBi, 90°
AH90WB
345.22 EUR без ДДС
RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°
AH45WB
345.22 EUR без ДДС
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectors
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectorsTPA-SMA6
20.09 EUR без ДДС
Добави в кошница
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600C
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600CTPA-EPMP-B-6
40.18 EUR без ДДС
Добави в кошница
Antenna holder on mast L , lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042
8.05 EUR без ДДС
Добави в кошница

Технически параметри

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Designed for mast diameter [mm]
40 up to 80
Protection class
IP65
Wireless frequency
5 GHz, 6 GHz
Azimuth beam width (-6dB) [°]
45
Elevation beam width (-6dB) [°]
20
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
18,5

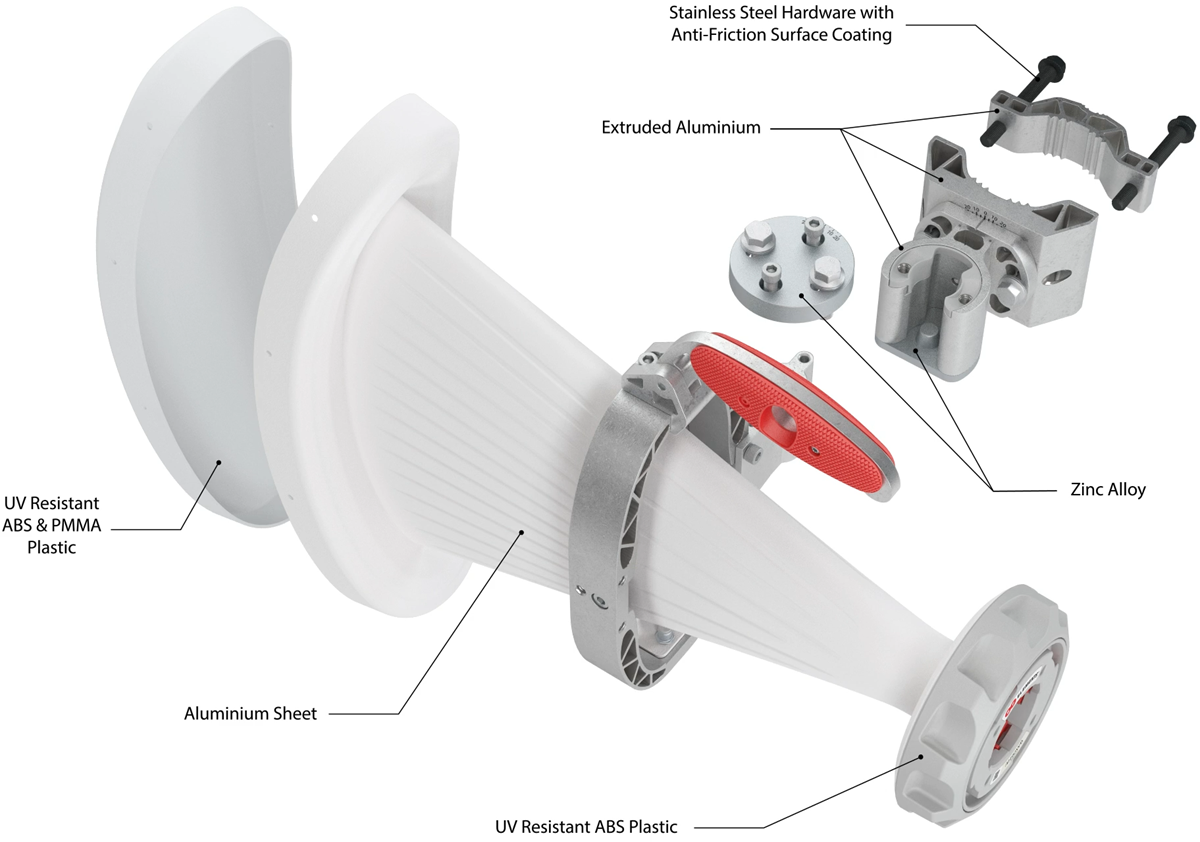

Material
ABS plastic, Aluminum, Stainless steel, Zinc alloy
Operating temperature [°C]
-35 up to 60
Depth [mm]
491
Width [mm]
316
Height [mm]
348
