Grandstream GWN7624 In-Wall Wi-Fi Access Point
Your price incl. VAT (20.0%)
88.44 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 22-10-2025
Product description
The GWN7624 is an in-wall Wi-Fi access point that includes three Gigabit network ports, 2 which provide PoE, to provide internet connections and power for devices such as IP phones, computers, TVs and more.

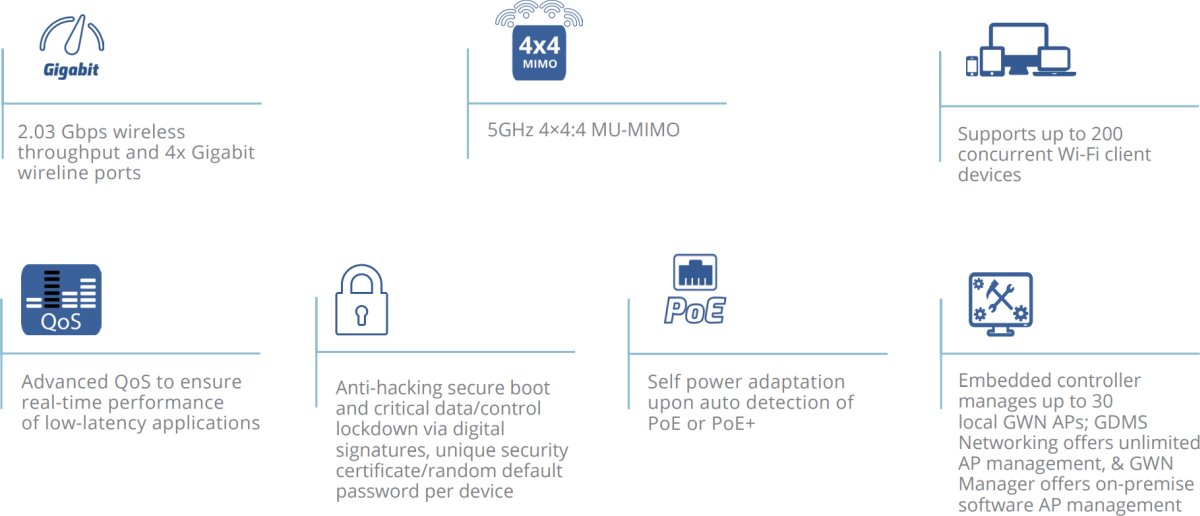

Key features
- Up to 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
- Supports up to 200 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 30 local GWN series APs
- GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
Package contents
- Device
- (4) Screws
- Quick Installation Guide
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 802.3at
WAN speed
(1) 10/100/1000Mbps
Frequency range [MHz]
5180 - 5825
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
600
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
23
Tx power 5GHz [dBm]
25
Security
WEP, WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
4 x 4
Type of antenna
Built-in
Internal antennas
4
Purpose
Indoor
Antenna gain [dBi]
3, 5
PoE Input ports
1
LAN ports
4
LAN speed
(3) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
PoE Out ports
2
PoE budget [W]
12
Max. power consumption [W]
25
Buttons
Reset
Operating temperature [°C]
-10 up to 50
Width [mm]
86
Height [mm]
135
Depth [mm]
39
IPv6 support
Yes
