Grandstream GWN7670WM In-Wall Wi-Fi 7 Access Point

Grandstream GWN7670WM In-Wall Wi-Fi 7 Access Point
Your price incl. VAT (20.0%)
121.49 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Manufacturer
Product number
GWN7670WM
Product Code
RL029.802
Warranty
36 months

Product description

The GWN7670WM is a new generation enterprise-grade 802.11be IN-Wall Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

Grandstream GWN7670WM

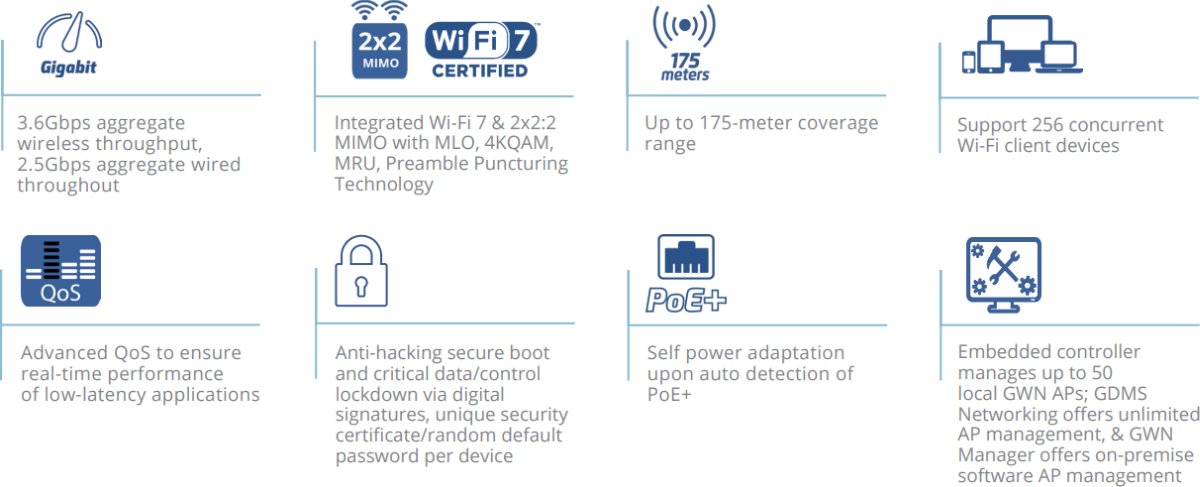

Key features

  • Up to 3.6Gbps aggregate wireless throughput, up to 2.5Gbps aggregate wired throughput
  • Integrated Wi-Fi 7 & 2x2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
  • Up to 175-meter coverage range
  • Supports 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self-power adaptation upon auto-detection of PoE+
  • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

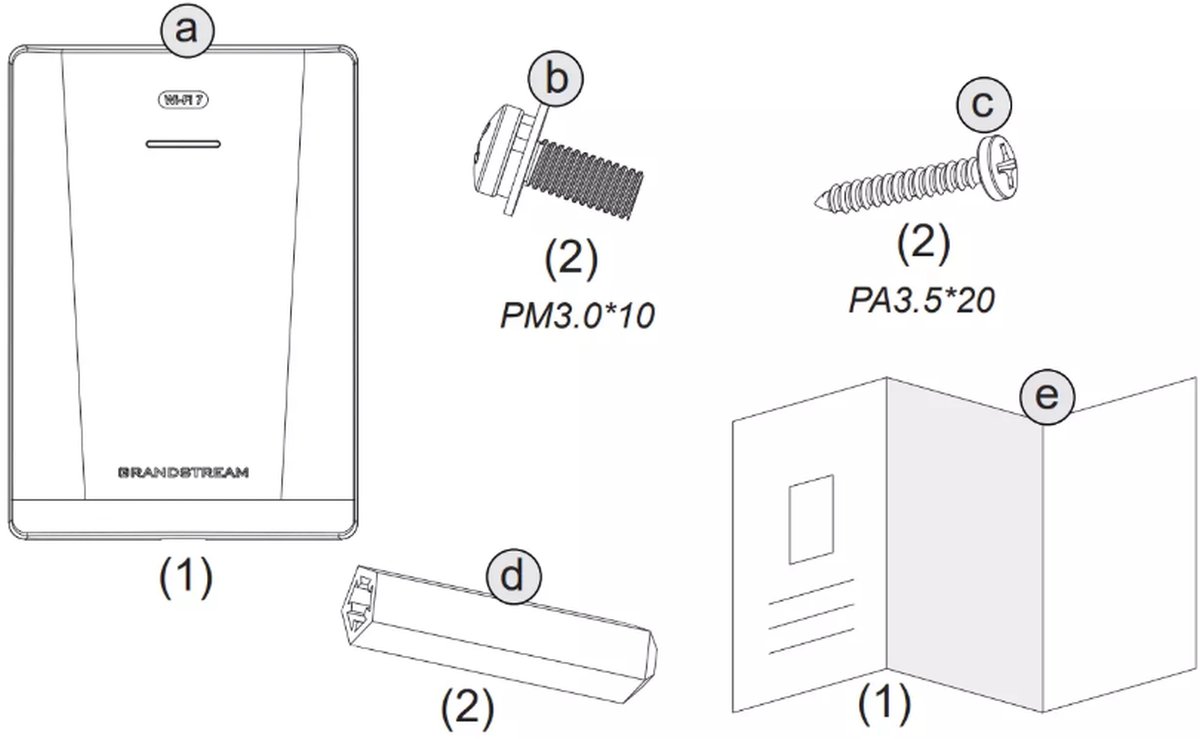

Package contents

Grandstream GWN7670WM

Download

https://download.discomp.cz/Grandstream/Datasheets/Datasheet_GWN7670WM_English.pdf
Download Datasheet
https://download.discomp.cz/Grandstream/QIG/GWN7670WM-QIG-Web.pdf
Download Quick Installation Guide
https://download.discomp.cz/Grandstream/User%20Guide/GWN76xx-User_Manual.pdf
Download User Manual
https://download.discomp.cz/Grandstream/User%20Guide/GWN76xx_Standalone_Guide.pdf
Download Standalone Guide

Technical parameters

LAN ports
Power over Ethernet
802.3af, 802.3at
WAN speed
(1) 100/1000/2500Mbps LAN/WAN
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band), Bluetooth
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2880
Transmission speed - 2.4GHz [Mb/s]
688
Tx power 2.4GHz [dBm]
26
Tx power 5GHz [dBm]
26
Security
WEP, WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
5
Purpose
Indoor
Antenna gain [dBi]
3, 4
PoE Input ports
1
LAN ports
1
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
15,5
Buttons
Reset
Operating temperature [°C]
0 up to 45
Width [mm]
106
Height [mm]
150
Depth [mm]
34
IPv6 support
Yes
