TP-Link IES206GPP Omada 6-port Gigabit industrial easy managed PoE switch
Your price incl. VAT (20.0%)
182.18 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 27-08-2025
Product description
The industrial easy managed switch has 4 Gigabit LAN ports, 1 Combo RJ45/SFP slot and 1x SFP. The device has DIN rail mounting. The operation temperature range is between -40 and 75 °C. The devices is covered by IP40-rated aluminum housing.
Power adapter is not in the package.
Key features
- (4) Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- (1) Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- Up to 120W Power Budget with up to 60W for PoE++ Port

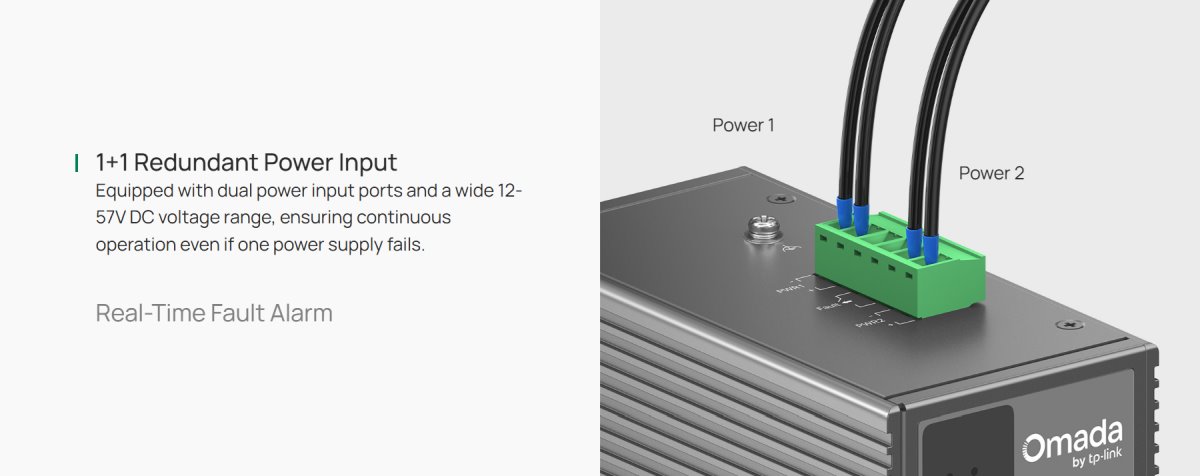

- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Package contents
- Device
- DIN-Rail Mounting Bracket
- Wall-Mounting Plates
- Installation Guide
Download
Technical parameters
LAN ports
Design
On the wall, DIN rail
Switchning capacity [Gbps]
12
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
8,9
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS, L2
Power type
DC terminal
Fans
No
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2 (1x Combo)
Optical interfaces
(1) 1000Mbps + (1) 1000Mbps Combo
PoE-Out standards
802.3af, 802.3at, 802.3bt
Redundant power supply
Yes
PoE Out ports
4
PoE budget [W]
120
Long range PoE - up to 250m
Yes
Max. power consumption [W]
135
Chassis design
Metal
Power via connector/terminal
12 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Width [mm]
60
Height [mm]
155
Depth [mm]
120
Default IP address
192.168.0.1
Default login and password
admin / admin
