WirelessPtP Backhaul80GHz

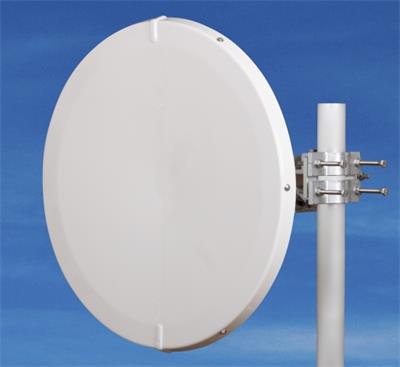

JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band

Вашата цена с ДДС (20.0%)

420.36 EUR

❌ Артикулът не е наличен. Няма възможност за поръчка.

Без потвърдена дата на доставка

Добави в кошница

Производител

Jirous

Продуктов номер

JRMC-680-80

Продуктов Код

RL028.391

Гаранция

23 месеца

Имате въпрос?

•
• Свали

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Description:

Deep parabolic antenna with high interference resistance and strong mechanical durability

High isolation between adjacent links

Radome included in the package

Heavy-duty JDMW-910 mount with extra fine elevation and azimuth adjustment

Supports both right and left mounting

Extreme wind resistance

Supported Radio Unit Interfaces:

Overview of compatible adapters for various units (must be ordered separately):

Racom – no adapter required

Ceragon, Cambium

Aviat

Mimosa B-11

Siklu

Ubiquiti AF-11

Remec, Wavelab, Zenith

Summit Development

Ericsson

SIAE

Alcoma

Other adapters available on request

Technical Specifications:

Frequency range: 71 – 86 GHz

Gain at lower frequency: 50.7 ± 1.4 dBi

Gain at upper frequency: 51.6 ± 1.4 dBi

Beamwidth (-3 dB): 0.4°

Front-to-back ratio: ? 67 dB

ETSI EN 302-217-4-2 v1.5.1: Class 3

US FCC: Cat. A

Polarization: Depends on radio unit installation; linear – horizontal and vertical

Reflector: 680 mm diameter – aluminum alloy, powder-coated

Radome: UV-stabilized plastic

Connection: 3.2 mm waveguide

Pole mount: O 40 – 120 mm

Operational wind speed: max. 180 km/h

Survival wind speed: max. 240 km/h

Свали

https://download.discomp.cz//Jirous/Datasheets/jrmc-680-80_302.pdf

Datasheet
