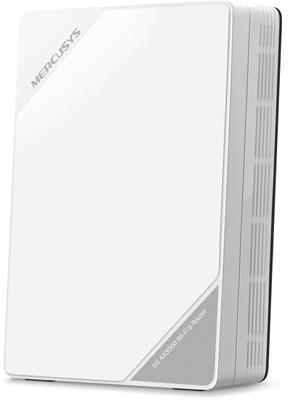

MERCUSYS MB520-5G, wireless 5G LTE router

MERCUSYS MB520-5G, wireless 5G LTE router
Вашата цена с ДДС (20.0%)
178.82 EUR
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 16-07-2025
MERCUSYS
Производител
Продуктов номер
MB520-5G
Продуктов Код
RL029.472
Гаранция
36 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Working as a 5G router, MB520-5G effortlessly converts a 5G/4G signal into WiFi and share it with multiple devices. Whether you're streaming, gaming, or attending video conferences, enjoy a seamless and uninterrupted online experience.

MERCUSYS MB520-5G

Key features

  • Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Convert your 5G network into WiFi and share it with multiple WiFi devices.
  • AX3000 Dual Band WiFi 6 – Speeds up to 2402 Mbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band.
  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
  • Simultaneous Connection – Enjoy sharing internet access with up to 256 WiFi devices.
  • Maximized Coverage – Advanced internal antennas deliver fast, stable connections, while external ports support additional antennas for extended range.
  • 2.5 Gbps WAN/LAN Port – Plug an Ethernet cable into the WAN/LAN port for flexible access if you can't get a 5G connection.
  • EasyMesh-Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
  • High-Quality Telephony – Features a phone port for landline use, enabling simultaneous calling and internet access via VoLTE.
  • Easy App Control – The MERCUSYS app helps you set up in minutes. Manage your WiFi at home or away through your iOS or Android devices.
MERCUSYS MB520-5G

Package contents

  • Device
  • Power Adapter
  • RJ45 Ethernet Cable
  • RJ11 Phone Cable
  • Quick Installation Guide

Свали

https://download.discomp.cz/Mercusys/QSG/7100000059_MB520-5G_QIG_REV1.0.020250408011334.pdf
Свали Quick Installation Guide
https://www.mercusys.com/en/product/details/mb520-5g/#specifications
Свали Link to Specifications

Технически параметри

LAN ports
WAN speed
(1) 100/1000/2500Mbps
Design
Desktop
Technology and conveniences
EasyMesh
Operating mode
AP Router, Cellular router
Management
Web management, Mobilní aplikace
Wireless frequency
2.4 + 5 GHz (dual band), LTE, 3G (GSM), 4G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Internal antennas
4
Purpose
Indoor
Integrated 4G/LTE radio part
Yes
Power type
DC connector
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
LAN ports
2
LAN speed
(1) 100/1000/2500Mbps LAN/WAN + (1) 10/100/1000Mbps
Gigabit LAN
Yes
Power via connector/terminal
12V / 2A
Buttons
Reset, WPS
Operating temperature [°C]
0 up to 40
Width [mm]
130
Height [mm]
190
Depth [mm]
70
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
