Ubiquiti sector antenna AirMax MIMO 16dBi 2,4GHz, 90°, rocket kit
Your price incl. VAT (20.0%)
128.36 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 3 variants
Product description

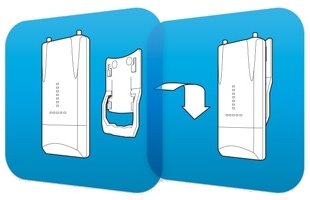

AM-2G16-90 airMAX Sector Antenna is a 16dBi Carrier Class 2x2 MIMO (Dual Polarity) Sector Antenna with 90° beam angle that was designed for 2.4GHz band and for integrate with Rocket M radios (RocketM sold separately).Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Package contains
- Antenna
- (2) RSMA male - RSMA male pigtail
- Holder + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
Wind load [km/h]
160
Rocket kit
Yes
Wireless frequency
2.4 GHz
Elevation beam width (-6dB) [°]
90
Azimuth beam width (-6dB) [°]
91
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
16
Weight [kg]
3,9
Width [mm]
145
Height [mm]
700
Depth [mm]
79
