Ubiquiti UF-LOCO - U Fiber LOCO, 20-Pack
Your price incl. VAT (20.0%)
895.48 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 3 variants
Product description

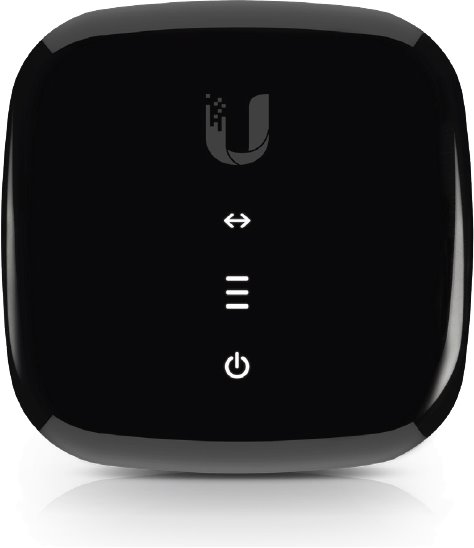

Modern, elegant industrial design, robust design and high performance - this is U Fiber Loco, a CPE unit for GPON solutions.
Device status information
Compared to version UF-NANO on this unit lacks an information LED display, instead, everything you need shown in 3-state diodes - Ethernet connections, received signal strength indication and power.
Power options
The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.
GPON technology

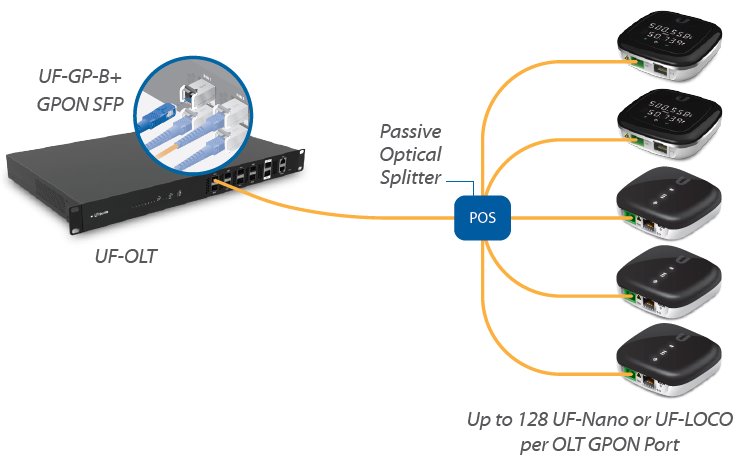

Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UF-OLT and third-party OLT devices.
Package contains
- (20) Device
- (20) Wall Mount Bracket
- (20) Screw Anchors + screws
Download
Technical parameters

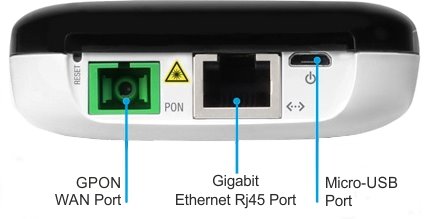

LAN ports
Power over Ethernet
24V DC
Tx power [dBm]
1.5 up to 5
Optical Connectors
(1) SC
Transmission speed
2.488 / 1.244 Gbps
Distance [km]
20
Transfer type
GPON
Polishing type
APC
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Receiver sensitivity [dBm]
-8 up to -28
Max. power consumption [W]
3,5
Power via connector/terminal
5V / 1A
Operating temperature [°C]
-10 up to 45
Width [mm]
77
Height [mm]
26
Depth [mm]
77
