Ubiquiti NanoBeam M5-16, outdoor, 5GHz MIMO, 2x 16dBi, AirMAX
Your price incl. VAT (20.0%)
65.50 EUR
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 05-03-2025
8.05 EUR excl. VAT
7.79 EUR excl. VAT
Product description
NanoBeam NBE-M5-16 is a powerful completely outdoor unit including 2x 16dBi (2x2 MIMO) antennas for the 5GHz band as a CPE solution suitable for shorter distances. The unit allows transmission speed up to 300Mbps.

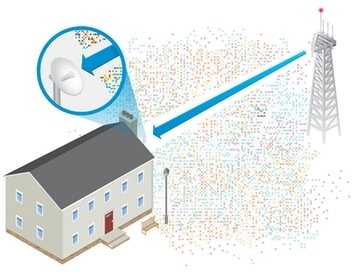

The form factor of the NanoBeam® features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.

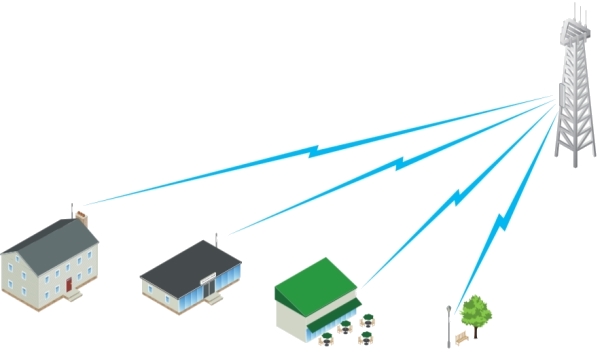

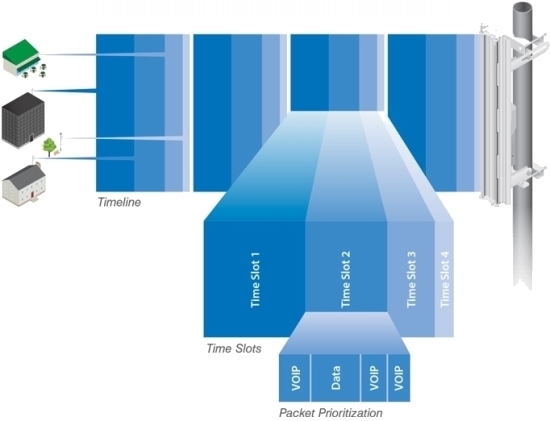

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.
Package contains
- Device
- PoE power adapter
- Power cord
- Metal strap
- Lock ring + ball joint mount
Download
Technical parameters
LAN ports
Power over Ethernet
24V DC
Operating mode
Client, Repeater, AP Router, Access Point, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a, airMAX
Transmission speed - 5GHz [Mb/s]
300
Tx power 5GHz [dBm]
26
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
16
LAN ports
1
LAN speed
(1) 10/100Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
6
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
320
Width [mm]
140
Height [mm]
140
Depth [mm]
54
CPU
MIPS 74Kc
CPU frequency [MHz]
560
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
