Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack

Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Your price incl. VAT (20.0%)
177.40 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 07-05-2025
Ubiquiti Networks
Manufacturer
Product number
AMY-9M16x2
Product Code
RL002.508
Warranty
24 months

Product description

The airMAX 900 MHz YAGI Antenna is a high-gain array antenna designed to seamlessly integrate with the Rocket™M900 radio (sold separately). It features incredible range performance of 20+ km and breakthrough speed of 90+ Mbps.

2x2, Dual-Polarity Design

The airMAX® Yagi Antenna is a high-gain array antenna that delivers high performance in the 900 MHz radio band.

AMY-9M16x2

Long-Range Deployments

The airMAX® Yagi Antenna performs at ultra-long ranges in Non-Line-of-Sight (NLOS) applications.

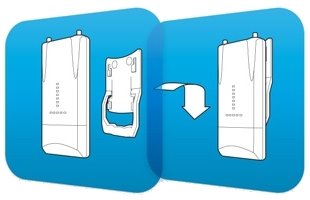

Plug and Play Integration

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

AMY-9M16x2

Package contains

  • (2) Antenna
  • (2) Mounting kit

Download

https://download.discomp.cz/Ubiquiti/Datasheets/airMAX_900MHz_YAGI_Antenna.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/QSG/airMAX_Yagi_AMY-9M16_QSG.pdf
Download Quick Start Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Antenna design
Yagi
VSWR
< 1,5
F/B ratio [dB]
20
Cross-Pol Isolation [dB]
20
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
900 MHz
Elevation beam width (-6dB) [°]
29
Azimuth beam width (-6dB) [°]
29
RF connectors
(1) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
16
Weight [kg]
2,5
Width [mm]
215
Height [mm]
218
Depth [mm]
1365
