Reyee RG-ES126S-LP V2 24-Port 10/100 Mbps with 2-Port Gigabit Rackmount PoE Switch
Your price incl. VAT (20.0%)
144.73 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 05-03-2025
Manufacturer
Product number
RG-ES126S-LP V2
Product Code
RL026.491
Warranty
36 months
Product description
Highlight Features
- PoE budget 180W
- 24-Port 10/100Mbps with 2-Port Gigabit Rackmount PoE switch
- Unmanaged switch, which is visible on Ruijie Cloud APP
- Large buffer for smooth data transmission
- Intelligent PoE management
- High network reliability

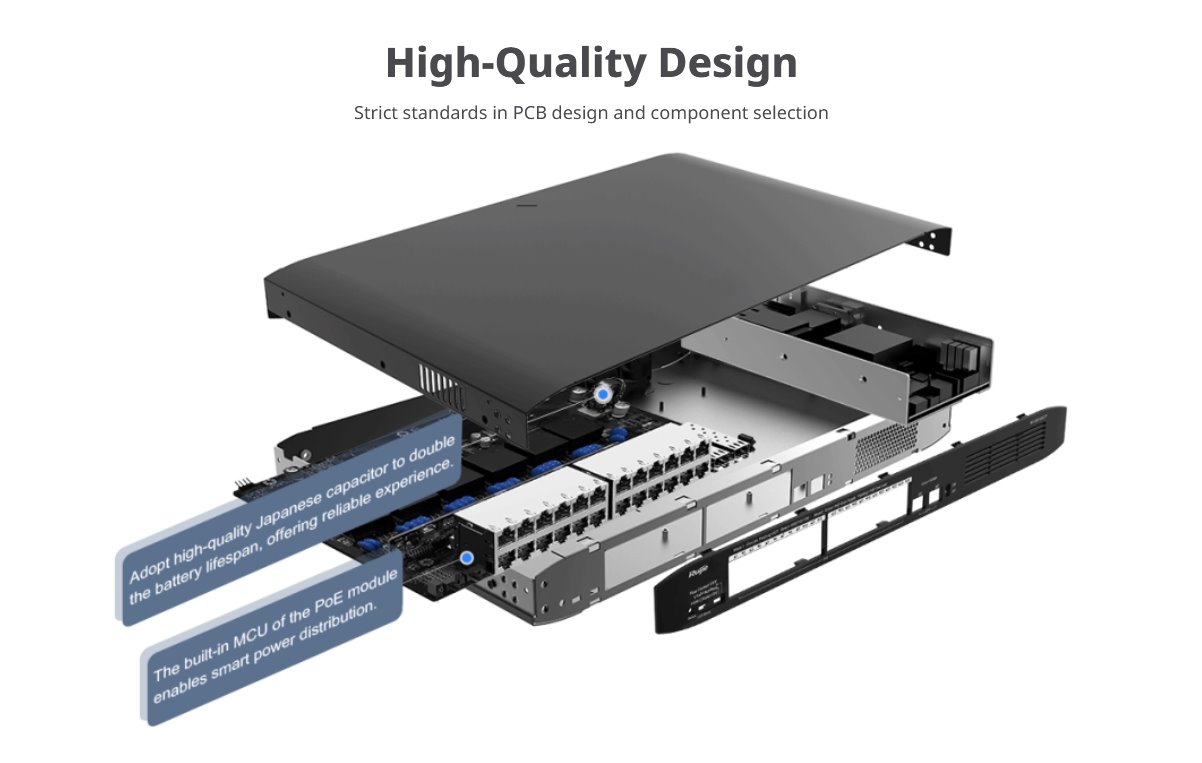

- High-quality design
- Adaptation to various scenarios
Package contents
- Mounting bracket 2x
- Foot pad 4x
- Screw(M3x6) 8x
- Power cord
- Quick Start Guide
Download
Technical parameters
LAN ports
Design
Desktop
MAC address table
16000
Switchning capacity [Gbps]
8,8
Packet forwarding rate [Mpps]
6,55
Power type
Mains power (230V)
Fans
Yes
LAN ports
26
LAN speed
(24) 10/100Mbps + (2) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
1 (1x Combo)
Optical interfaces
(1) 1000Mbps Combo
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
180
Max. power consumption [W]
220
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
0 up to 45
Height [mm]
44
Width [mm]
440
Depth [mm]
208
