TP-Link EAP623-Outdoor HD Wi-Fi 6 Access Point

TP-Link EAP623-Outdoor HD Wi-Fi 6 Access Point
Your price incl. VAT (20.0%)
186.52 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
TP-Link
Manufacturer
Product number
EAP623-Outdoor HD
Product Code
RL026.726
Warranty
60 months

Product description

EAP623-Outdoor HD is an outdoor access point from the EAP series that supports the WiFi6 standard with a maximum modulation speed of up to 1.8Gbps (574+1201Mbps). There is support for the latest encryption standard WPA3. With smart antennas with 4dBi / 5dBi gain, high transmission power and MU-MIMO technology, it is ideal for covering large areas. Thanks to the IP67 certification, the AP can be placed outdoors without any worries. One Ethernet port with a speed of 1Gbps is used to provide connectivity, which supports the POE function according to the 802.3at standard. The maximum consumption of the device is 12.5W.

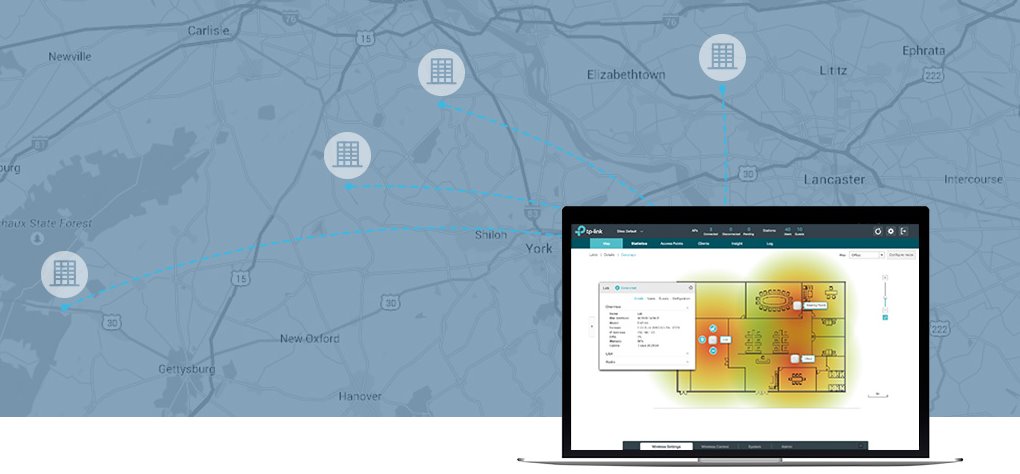

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

TP-Link EAP620 HD

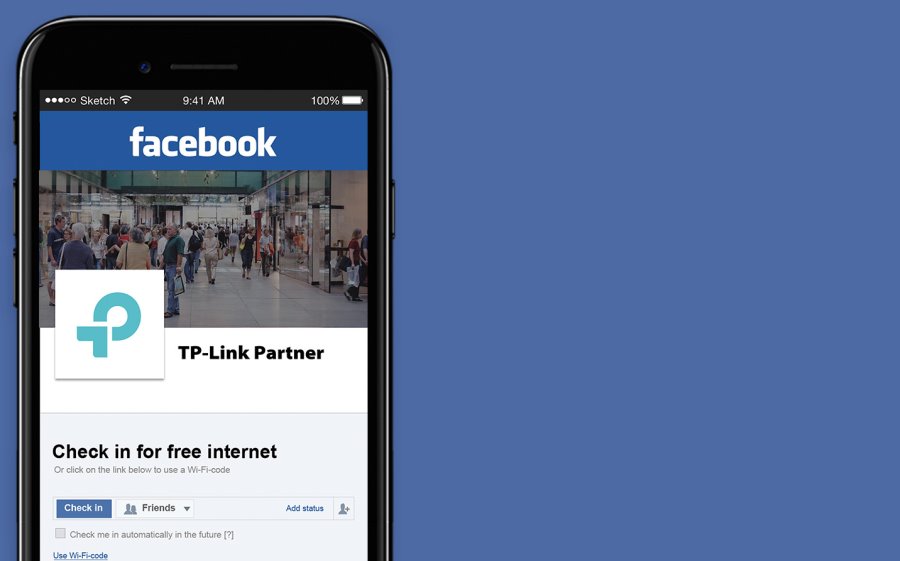

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

TP-Link EAP620 HD

Key features

  • Up to 1.8 Gbps WiFi 6 Speeds
  • Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc
  • High-density connectivity up to 1,000+ clients
  • Long-range coverage with the high-power amplifier and smart antennas
  • IP67 weatherproof enclosure for various outdoor environments
  • Advanced Functions: Centralized management, Omada mesh, and seamless roaming

Package contents

  • Device
  • Pole mount
  • (2) Plastic tie
  • (2) Screws + anchors
  • Weathererproof cable gland

Download

https://download.discomp.cz/TP-LINK/Datasheets/EAP623-Outdoor_HD.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/Userguides/Omada_EAP_UG.pdf
Download Omada EAP User Guide

Technical parameters

LAN ports
Power over Ethernet
802.3at
Maximum modulation
1024 QAM
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
1201
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
20
Tx power 5GHz [dBm]
30
Security
WPA, WPA2, WPA3
Azimuth beam width (-6dB) [°]
360
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Roaming
Yes
Antenna gain [dBi]
4, 5
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
12,5
Power via connector/terminal
48V DC
Buttons
Reset
Operating temperature [°C]
-30 up to 70
Weight [g]
790
Width [mm]
107
Height [mm]
280
Depth [mm]
57
IPv6 support
Yes
