Ubiquiti airFiber Dish 26dBi, 3GHz, Slant 45
Your price incl. VAT (20.0%)
265.97 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 05-03-2025
Product description
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. AF-3G26-S45 offers 26dBi of gain in a 650-mm diameter size.The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

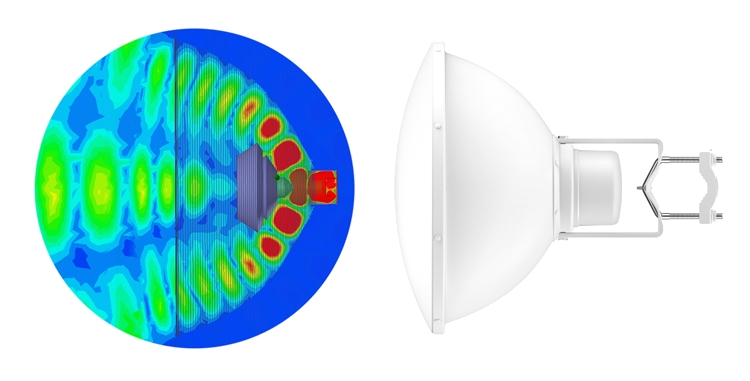

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.
Package contains
- Antenna
- Protective shroud
- (2) RSMA male - RSMA male pigtail
- Mount bracket + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Antenna design
Parabolic
VSWR
< 1,4
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
3.5 GHz
Elevation beam width (-6dB) [°]
7
Azimuth beam width (-6dB) [°]
7
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
26
Weight [kg]
9,8
Width [mm]
650
Height [mm]
650
Depth [mm]
300
