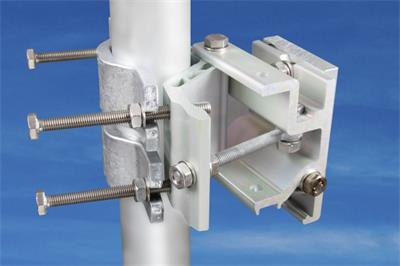

JIROUS JDMW-900AR - Precision Antenna Mount
Your price incl. VAT (20.0%)
77.96 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description
New design for easier installation and more stable tightening after alignment.
Application:
- antennas for microwave links up to 90 GHz
Specifications:
- The JDMW-900 mount is designed for antennas requiring easy handling and high stability
- High corrosion resistance
- Fine adjustment of elevation and azimuth
- Right or left mounting
- All bolts can be tightened with a single 17 mm wrench
- Easy installation
- All threads in aluminum are reinforced with stainless steel inserts
- Threads are treated with a special anti-seize compound for stainless steel connections
Technical Parameters:
- Antenna diameter: max. 1000 mm
- Pole mounting: diameter 40 – 120 mm
- Fine azimuth adjustment: ±16°
- Fine elevation adjustment: ±20°
- Weight: 3.2 kg
Download
Technical parameters
LAN ports
Weight [kg]
3,3
Width [mm]
157
Height [mm]
139
Depth [mm]
116
