TP-Link ES210GMP - Omada 10-Port Gigabit Easy Managed Switch with 8-port PoE+

TP-Link ES210GMP - Omada 10-Port Gigabit Easy Managed Switch with 8-port PoE+
Your price incl. VAT (20.0%)
117.10 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 05-03-2025
TP-Link
Manufacturer
Product number
ES210GMP
Product Code
RL028.783
Warranty
60 months

Product description

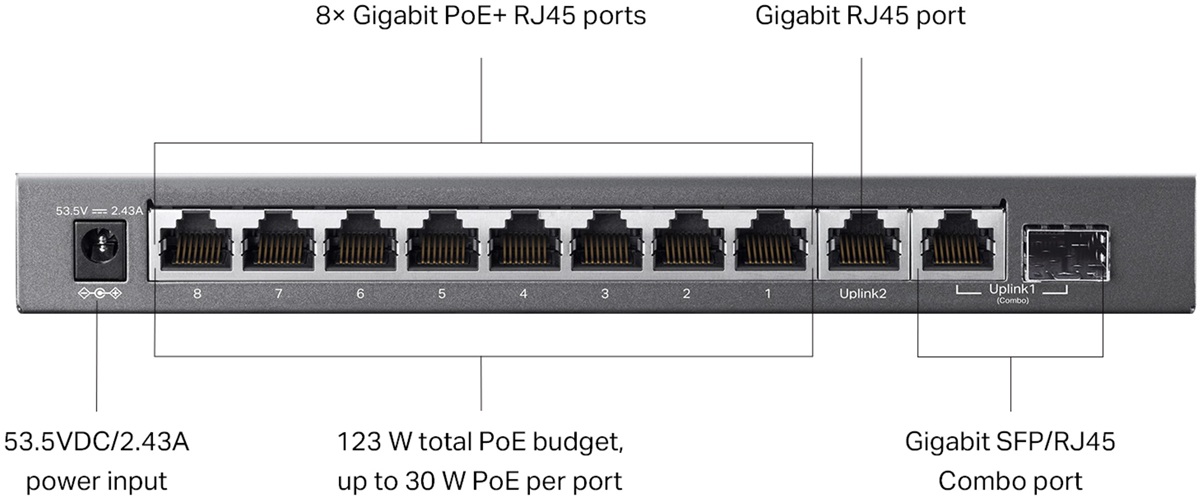

ES210GMP by TP-Link is a manageable L2 switch with PoE functionality, featuring 8 Gigabit LAN ports supporting 802.3af/at PoE. For uplink, it includes 1x Gbit RJ45 + 1x Gbit combo SFP/RJ45, enabling expansion through an optical network. The switch has a total PoE budget of 123W to power devices connected via cable. The switch can either be placed on the desktop or mounted on the wall. For quiet operation, the switch is designed without fans.

ES210GMP

Key Features

  • 123 W PoE Budget, 8× 802.3at/af PoE (up to 250m at 10 Mb/s)
  • 8× Gigabit LAN with PoE functionality and 1× Gbit RJ45 port + 1x Gbit SFP slot
  • Integration into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized management: Cloud access and Omada app for easy management
  • IGMP Snooping, VLAN, L2 features
  • Quiet operation, metal chassis
ES210GMP

Omada Controller

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, and Gateway routers, providing 100% centralized management in the cloud. Omada creates a highly scalable network, managed from a single interface. It offers seamless wireless and wired connectivity, ideal for hospitality, education, retail, offices, and more.

Package Contents

  • Device
  • Power adapter (53.5V / 2.43A)
  • Rubber pads

Download

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_ES210GMP(UN)1.0.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/QSG/7106511618_ES205G,ES205GP,ES210GMP(UN),%20ES206GP,%20ES208G_IG.pdf
Download Installation Guide

Technical parameters

LAN ports
Design
Desktop, On the wall
Switchning capacity [Gbps]
20
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
14,9
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS
Power type
Mains power (230V)
Fans
No
LAN ports
10
LAN speed
(9) 10/100/1000Mbps (1) + 1000Mbps SFP/RJ45 Combo
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
1 (1x Combo)
Optical interfaces
(1) 1000Mbps Combo
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
123
Long range PoE - up to 250m
Yes
Chassis design
Metal
Power via connector/terminal
53,5V/2,43A
Operating temperature [°C]
0 up to 40
Width [mm]
209
Height [mm]
26
Depth [mm]
126
Default IP address
192.168.0.1
Default login and password
admin / admin
