Ubiquiti UACC-Retrofit-PoE-2Wire PoE extender
Your price incl. VAT (20.0%)
94.06 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Manufacturer
Product number
UACC-Retrofit-PoE-2Wire
Product Code
RL028.971
Warranty
24 months
Product description
A pair of extenders that allow you to extend PoE over twisted pair or coaxial cables. This solution is ideal for situations where replacing the original cabling is not an option. Each extender features a 1x 10/100 Mbit ETH port and a two-pin connector, which can be fitted with a terminal block or an coaxial adapter. Powering the extenders is handled via the PoE-IN port with PoE++ (50V DC, 1.2A), while on the other side, you get a PoE-OUT PoE+ output (48V DC, 0.6A). The transmission over twisted pair or coaxial cable is based on the Homeplug AV standard. The extenders themselves consume 3W of power.

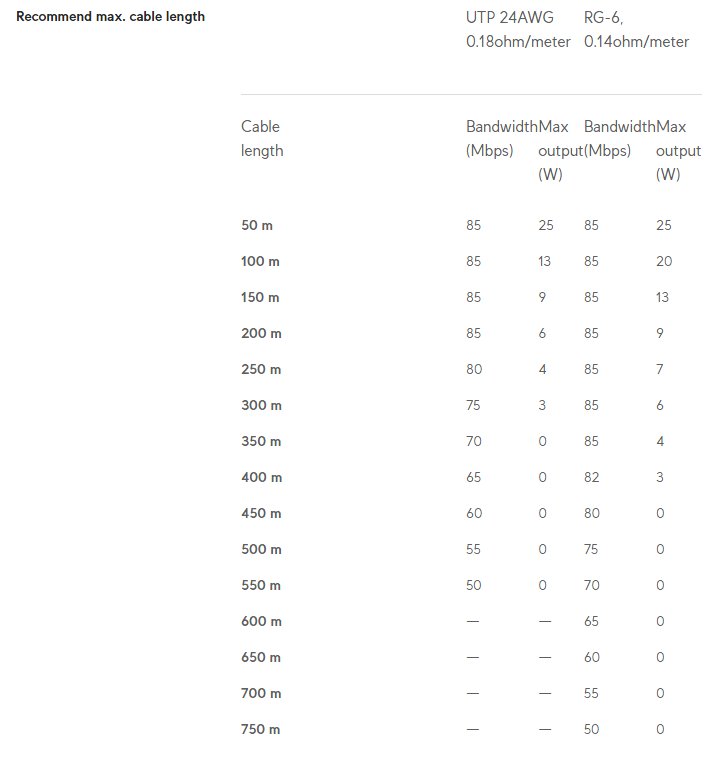

Recommended Cable Length
Package Contents
- (2) Extenders
- (2) Terminal blocks
- (2) Coax adapters
- (2) Plastic covers
- Mounting bracket
- Wall plugs and screws
Download
Technical parameters
LAN ports
Output Power / 1port [W]
30
Ethernet speed [Mb/s]
10/100
LAN ports
1
LED indication
Yes
LAN speed
(1) 10/100Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
1
Output Voltage [V]
48
Max. power consumption [W]
3
Operating temperature [°C]
-10 up to 40
Weight [g]
140
Width [mm]
44
Height [mm]
30
Depth [mm]
138
