TP-Link ER703WP-4G-Outdoor - Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
Your price incl. VAT (20.0%)
348.84 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 16-04-2025
Product description

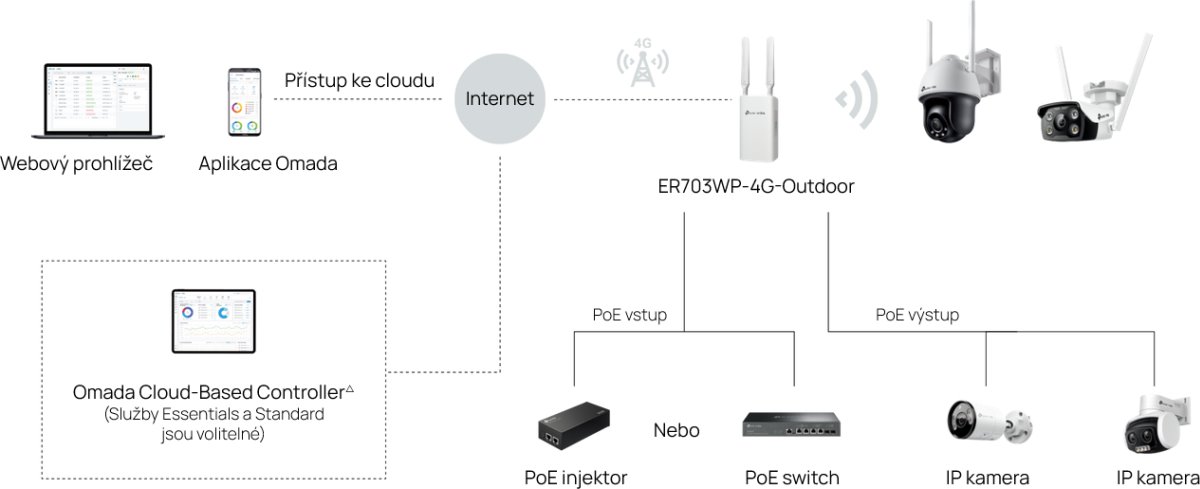

ER703WP-4G-Outdoor combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE input/output ports in a single device with automatic backup and load balancing between 4G and wired WAN. Enjoy a powerful and versatile gateway with easy deployment.
Key features
- 4G+ with speed up to 300 Mb/s
- Wi-Fi 6 - up to 2402 Mb/s at 5 GHz and up to 574 Mb/s at 2.4 GHz
- 3× Gigabit WAN/LAN port (2 × PoE Out, 1 × PoE In)
- 1× Slot for Nano SIM card
- Powered by 802.3at/bt PoE or 12V/2A DC
- Automatic WAN backup between 4G and Ethernet with load balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized administration
- Weather resistance (IP55)
Package contents
- Device
- Mounting Kits
- Quick Installation Guide
Download
Technical parameters
LAN ports
Power over Ethernet
802.3at, 802.3bt
WAN speed
(1) 10/100/1000Mbps
Design
On the mast
Maximum modulation
1024 QAM
Operating mode
Access Point, Bridge, Cellular router
Wireless frequency
2.4 + 5 GHz (dual band), 4G (GSM), LTE
WiFi standards
802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11n
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Detachable
Internal antennas
2
Detachable antennas
2
Purpose
Outdoor
Roaming
Yes
Integrated 4G/LTE radio part
Yes
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
LAN ports
3
LAN speed
(3) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
Max. power consumption [W]
15
Power via connector/terminal
12V / 2A
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Width [mm]
100
Height [mm]
175
Depth [mm]
39
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
RAM [MB]
512
