Ubiquiti Pro XG 10 PoE switch

Ubiquiti Pro XG 10 PoE switch
Your price incl. VAT (20.0%)
702.82 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti
Manufacturer
Product number
USW-Pro-XG-10-PoE
Product Code
RL029.440
Warranty
24 months

Download

https://dl.ui.com/qig/usw-pro-xg-10-poe/#index
Download Qucik Guide
https://techspecs.ui.com/unifi/switching/usw-pro-xg-10-poe
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
240
MAC address table
32000
Packet forwarding rate [Mpps]
178
Management
UniFi Network
Features
L3, VLAN, DHCP snooping, L2
Power type
Mains power (230V)
Fans
Yes
LAN ports
10
LAN speed
(10) 10G/5G/2.5G/1G/100M
Max. LAN ports speed
10G
PoE type
PoE-Out (only)
SFP+ cages
2
Optical interfaces
(2) 1G/10Gbps
PoE-Out standards
802.3bt
Redundant power supply
Yes
PoE Out ports
10
PoE budget [W]
400
Max. power consumption [W]
65
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-5 up to 40

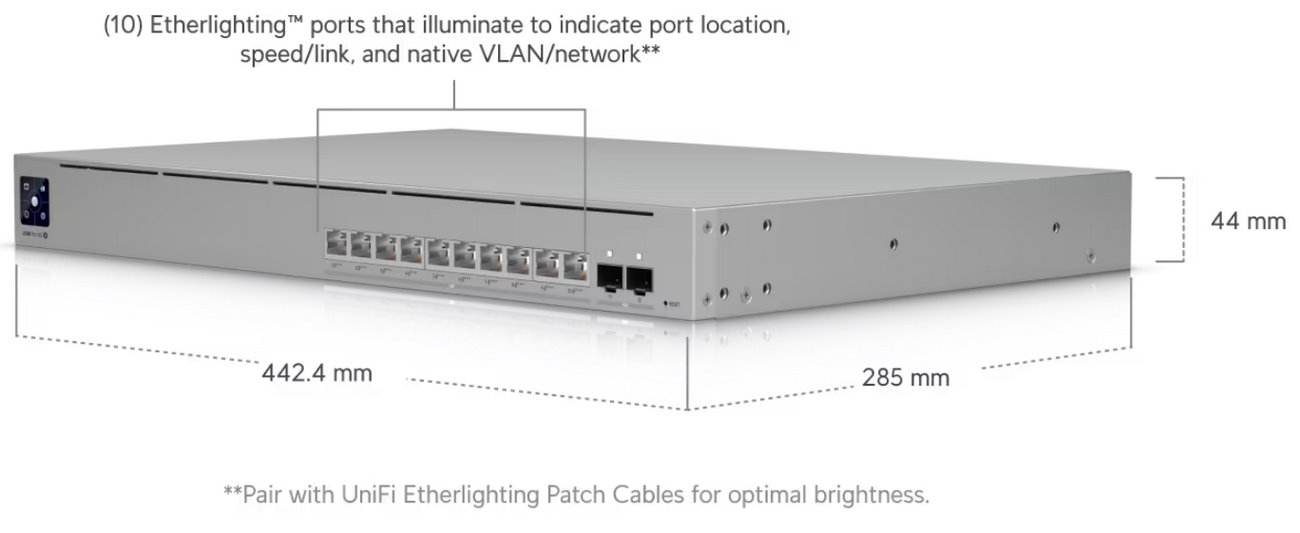

Width [mm]
442
Height [mm]
44
Depth [mm]
285
Default IP address
192.168.1.20, Dynamic from DHCP
Default login and password
ubnt / ubnt
Other features
Touchscreen
