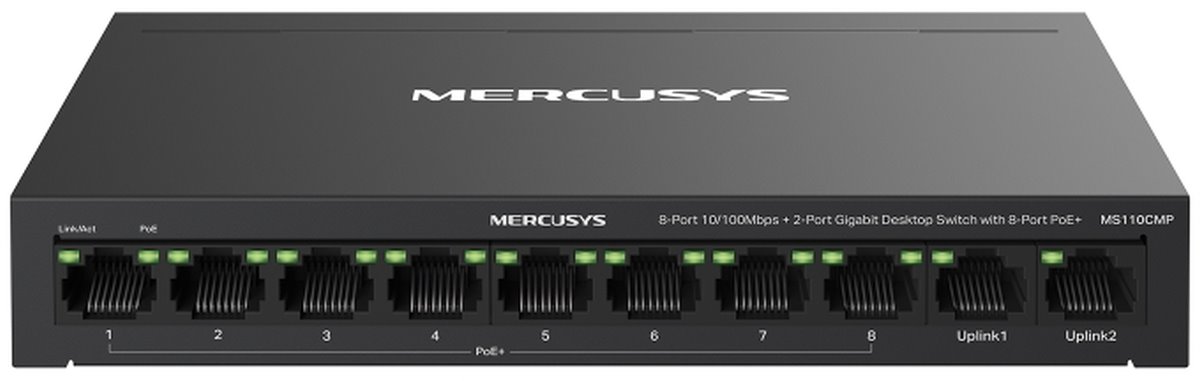

MERCUSYS MS110CMP, Gigabit Desktop Switch with 8-Port PoE+
Your price incl. VAT (20.0%)
33.72 EUR
✅ In Stock 10+ Бр.
Planned Delivery Date by Courier to you 28-05-2025
Product description
As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110CMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.
Key features
- 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports
- 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
Package contents
- Device
- Power Adapter
- Quick Installation Guide
Download
Technical parameters
LAN ports
Design
Desktop, On the wall
MAC address table
2000
Jumbo frame [Bytes]
2048
Power type
DC connector
Fans
No
LAN ports
10
LAN speed
(10) 10/100Mbps
Max. LAN ports speed
100M
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
115
Long range PoE - up to 250m
Yes
Max. power consumption [W]
15,5
Chassis design
Metal
Power via connector/terminal
53,5V/1,31A
Operating temperature [°C]
0 up to 40
Width [mm]
171
Height [mm]
27
Depth [mm]
98
